Lift Table

Product Description

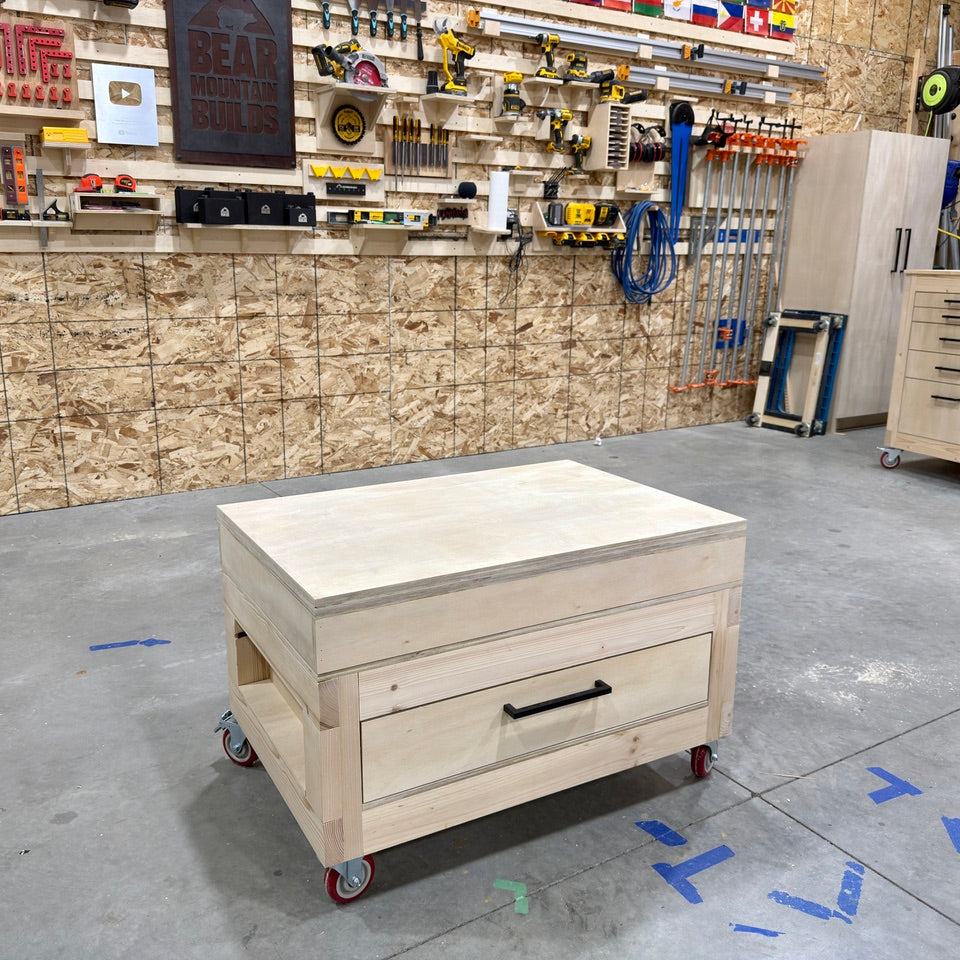

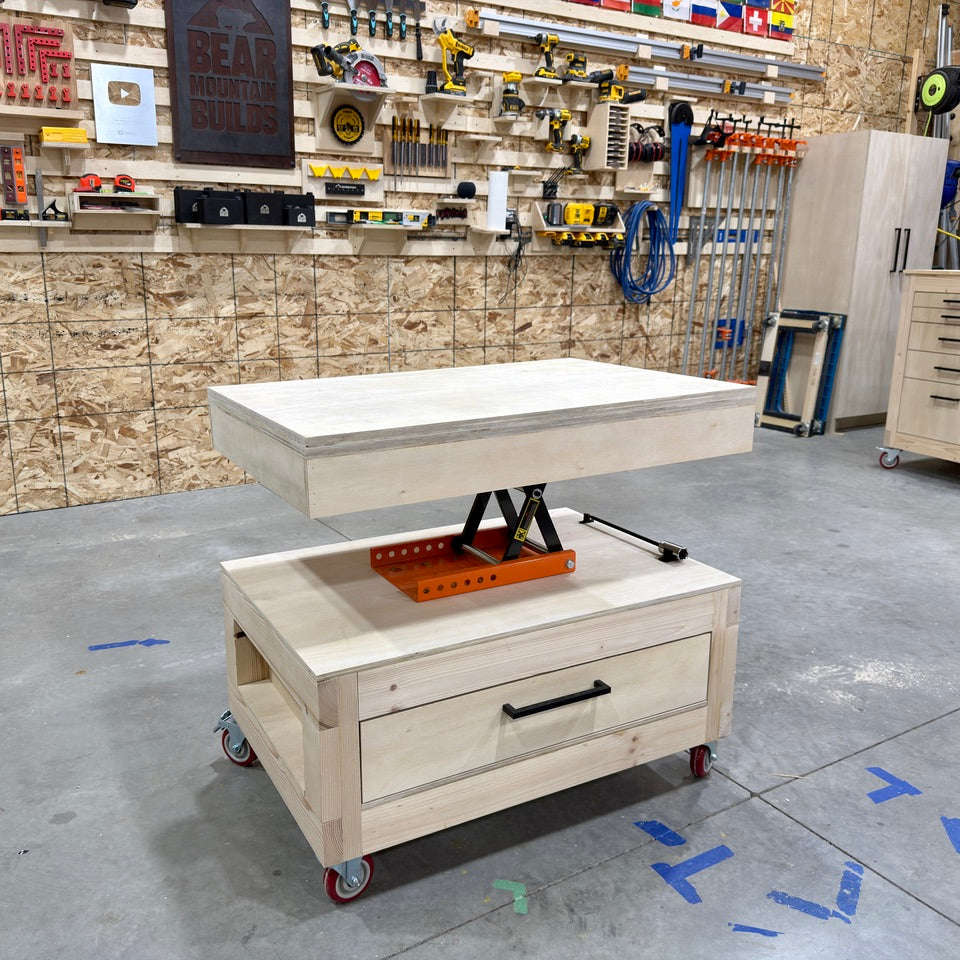

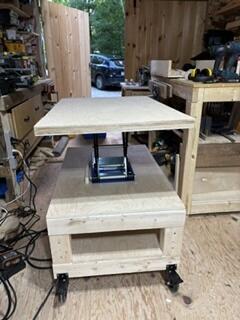

Stop hunching over your bench. This mobile lift table is built around a motorcycle scissor lift rated for 1100 lbs — drive it up and down with a standard drill and it holds rock-solid at any height in between. A full-width drawer and open shelf keep hardware and tools within reach, and locking casters let you roll it wherever the job needs it. Included is an automatic calculator that custom-fits the entire build to your width, depth, raised/lowered height, and board dimensions — just plug in your numbers and the plans adjust to fit.

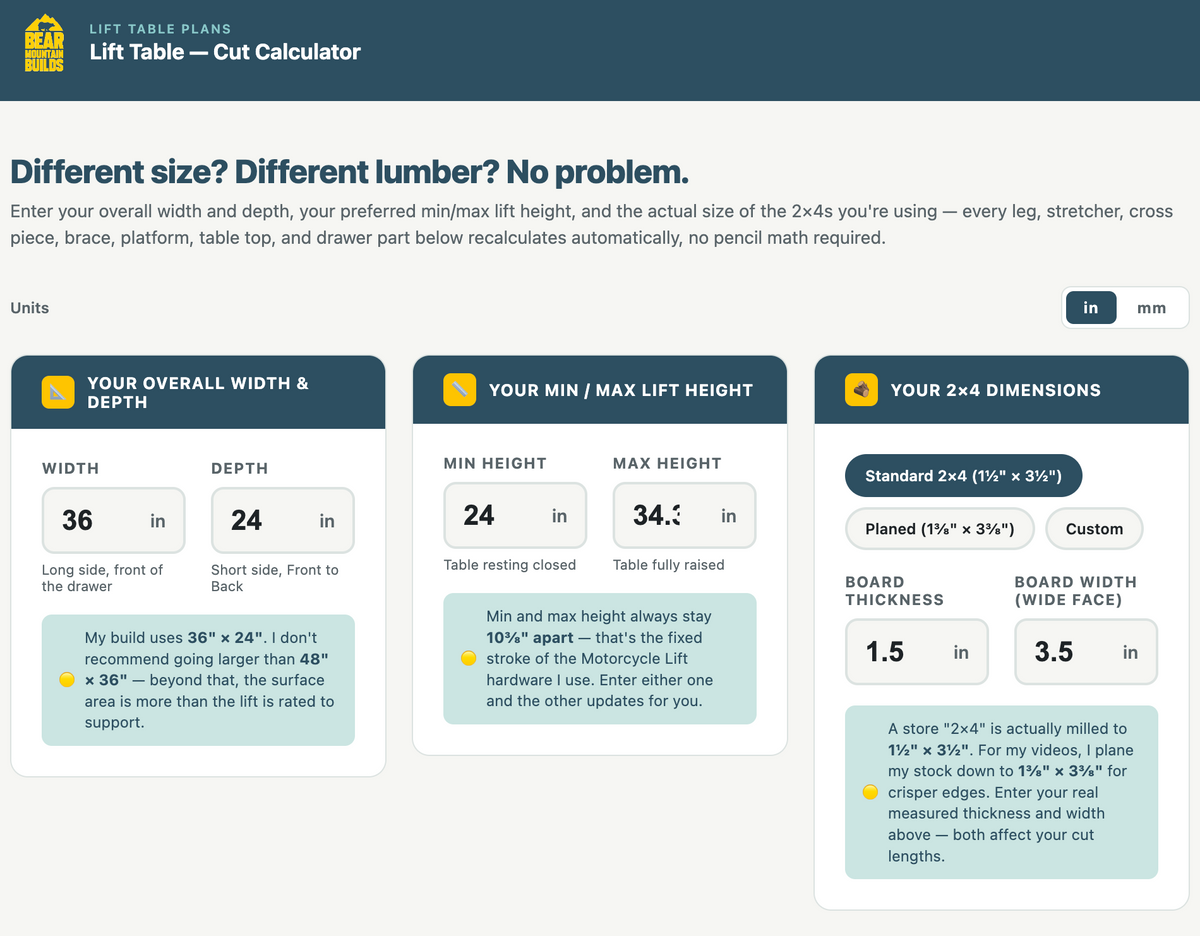

Built-In Calculator

Every Lift Table plan comes with an automatic calculator baked in — change a number, and the entire cut list, cut plan, and 3D diagrams update to match. No redrawing plans, no manual math.

• Set your own width and depth so the table fits your shop
• Dial in your raised and lowered height to match your workflow
• Input your board dimensions whether you're using 2x4s, metric lumber, or milled boards
• Every board length and cut recalculates instantly

Plans Include:

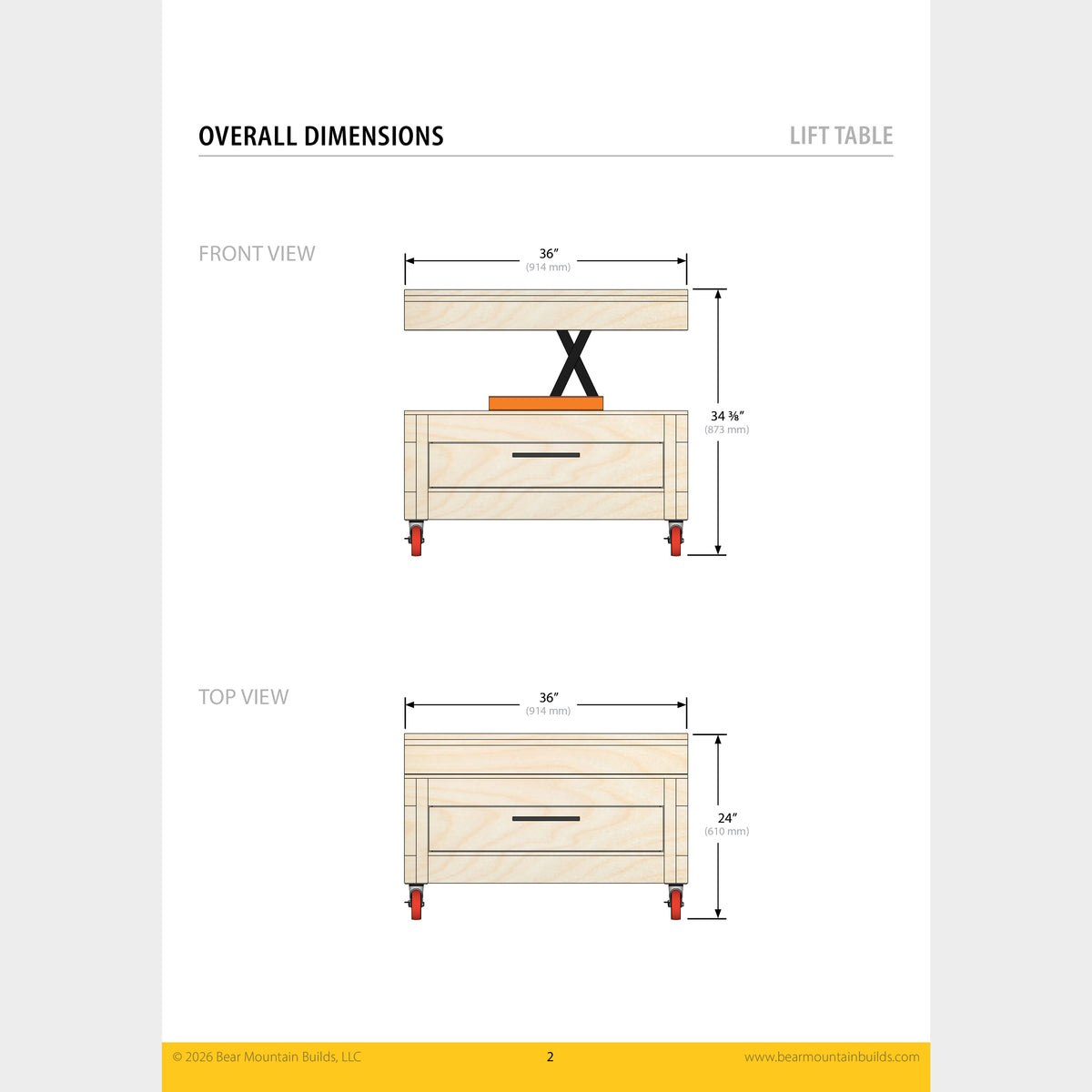

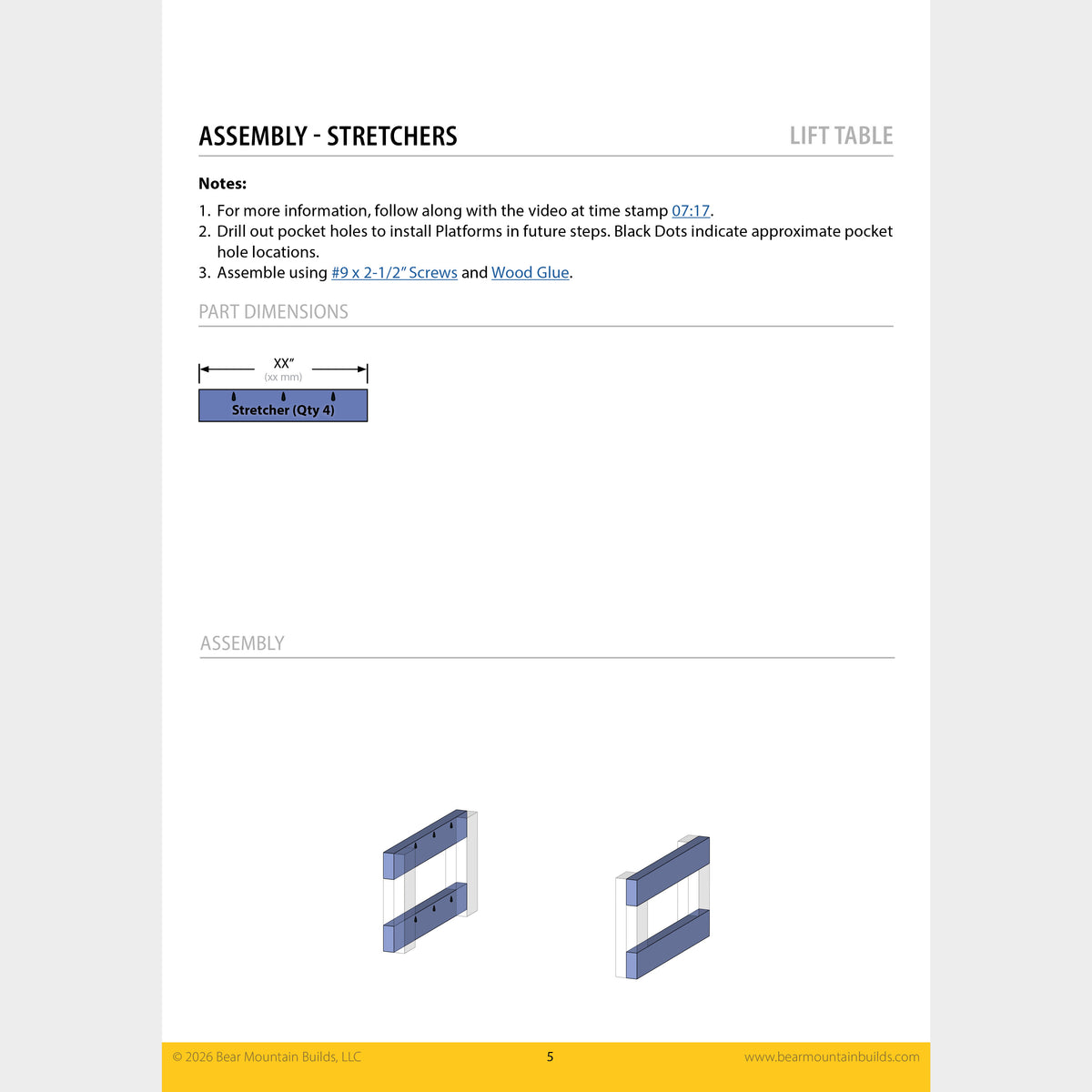

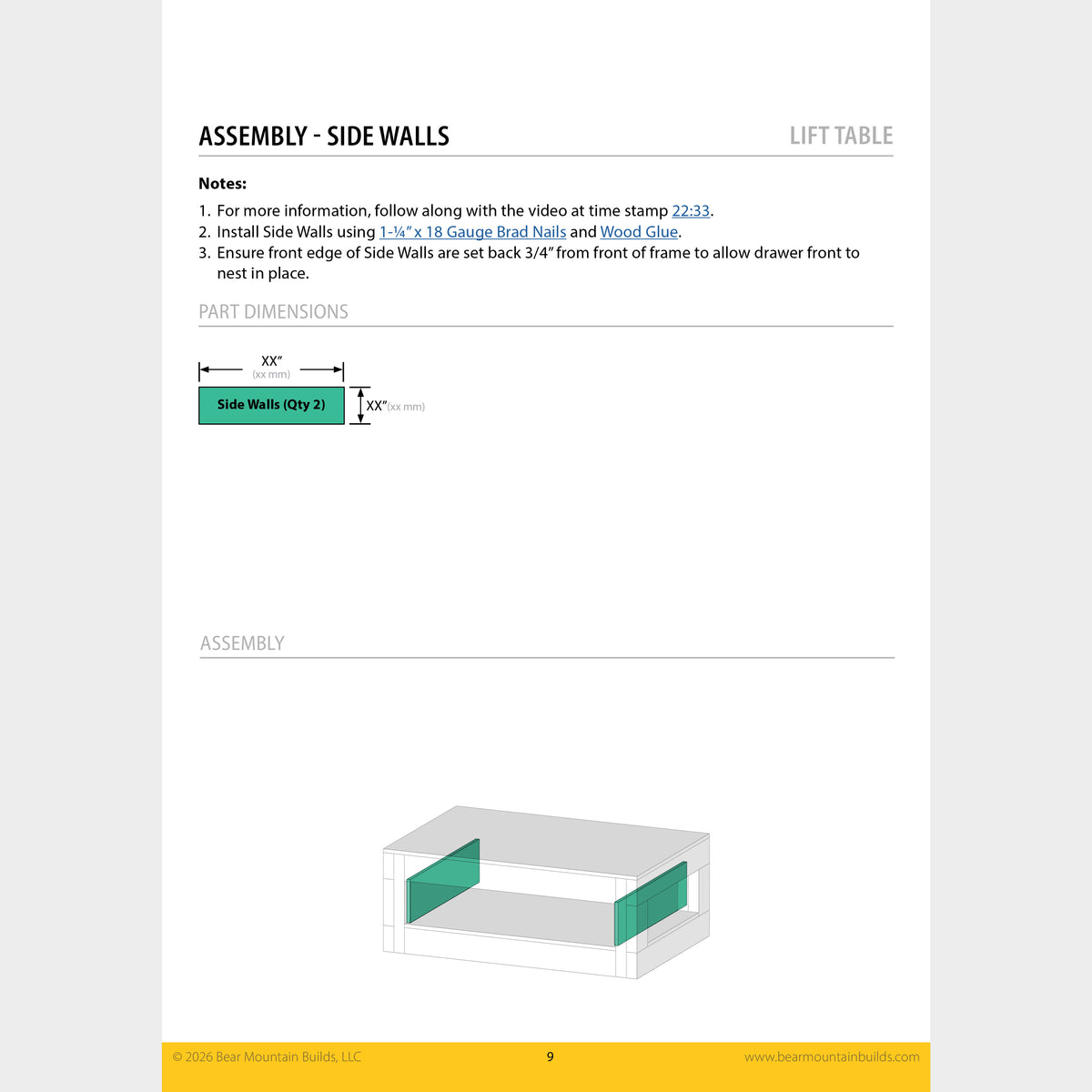

• Digital PDF download — 31 pages that include everything you'll need to build this lift table
• Automatic calculator to custom-fit the build to your width, depth, height, and board dimensions

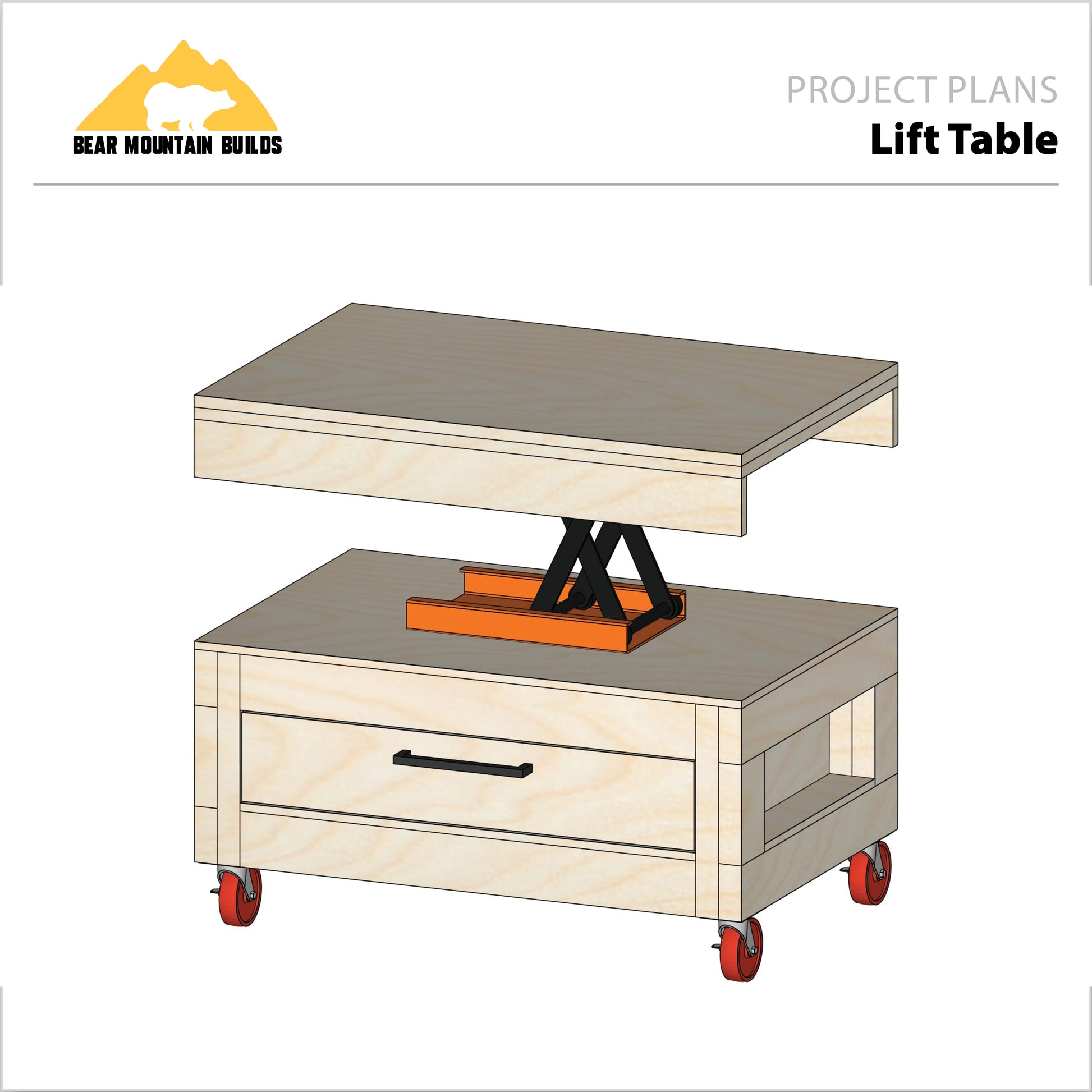

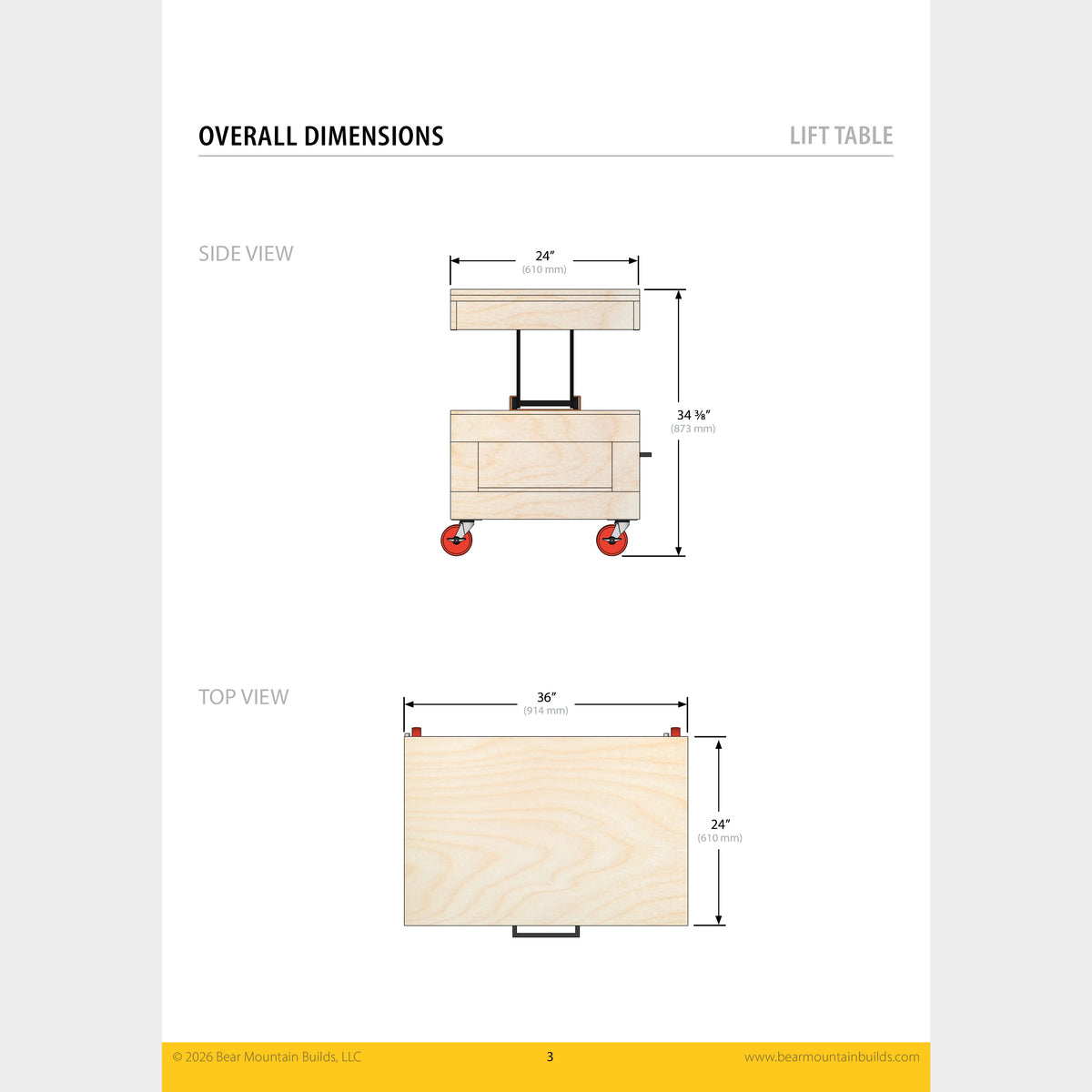

• Color coded 3D images and cut plans so you know exactly where every piece goes

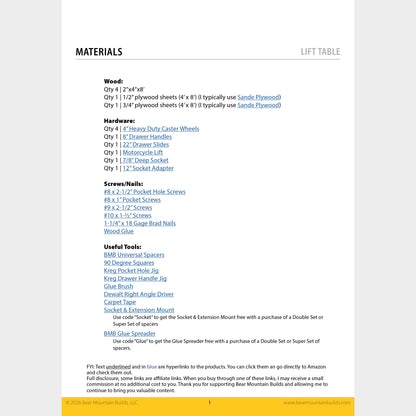

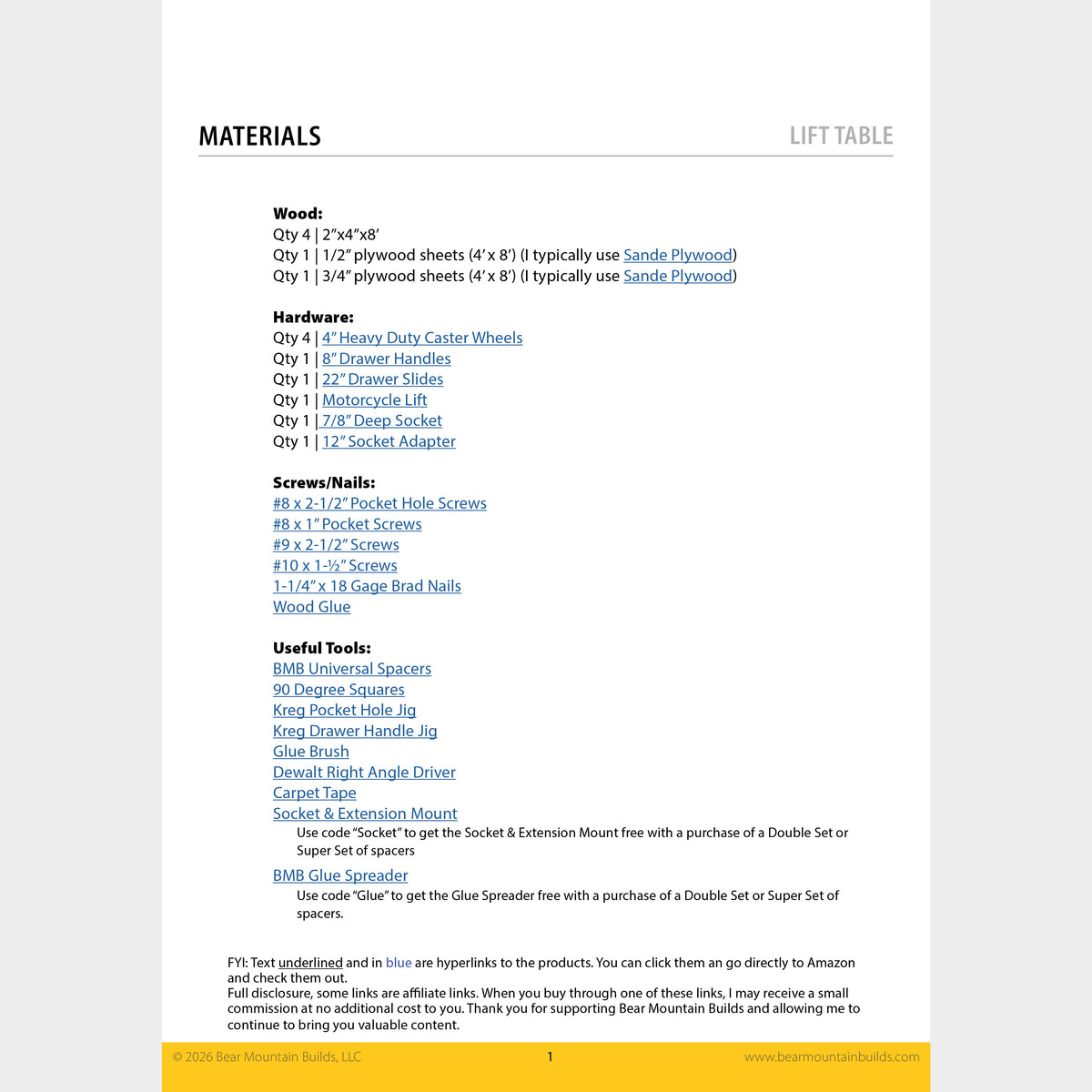

• Full material list with links to all hardware, including the 1100 lb scissor lift, so you don't have to go searching
• All dimensions in inch and millimeter units
• Note: driving the lift requires a 7/8" deep socket and 12" extension.

3D Model Available

• Make modifications to the design easily
• Get the 3D model in the following file formats: Autodesk Fusion (.f3d), Sketchup (.skp), and Autodesk Inventor (.ipt/.iam)
• Bundle and save by getting the models and plans at the same time!

See the full step by step build video HERE
