Flip Table

Product Description

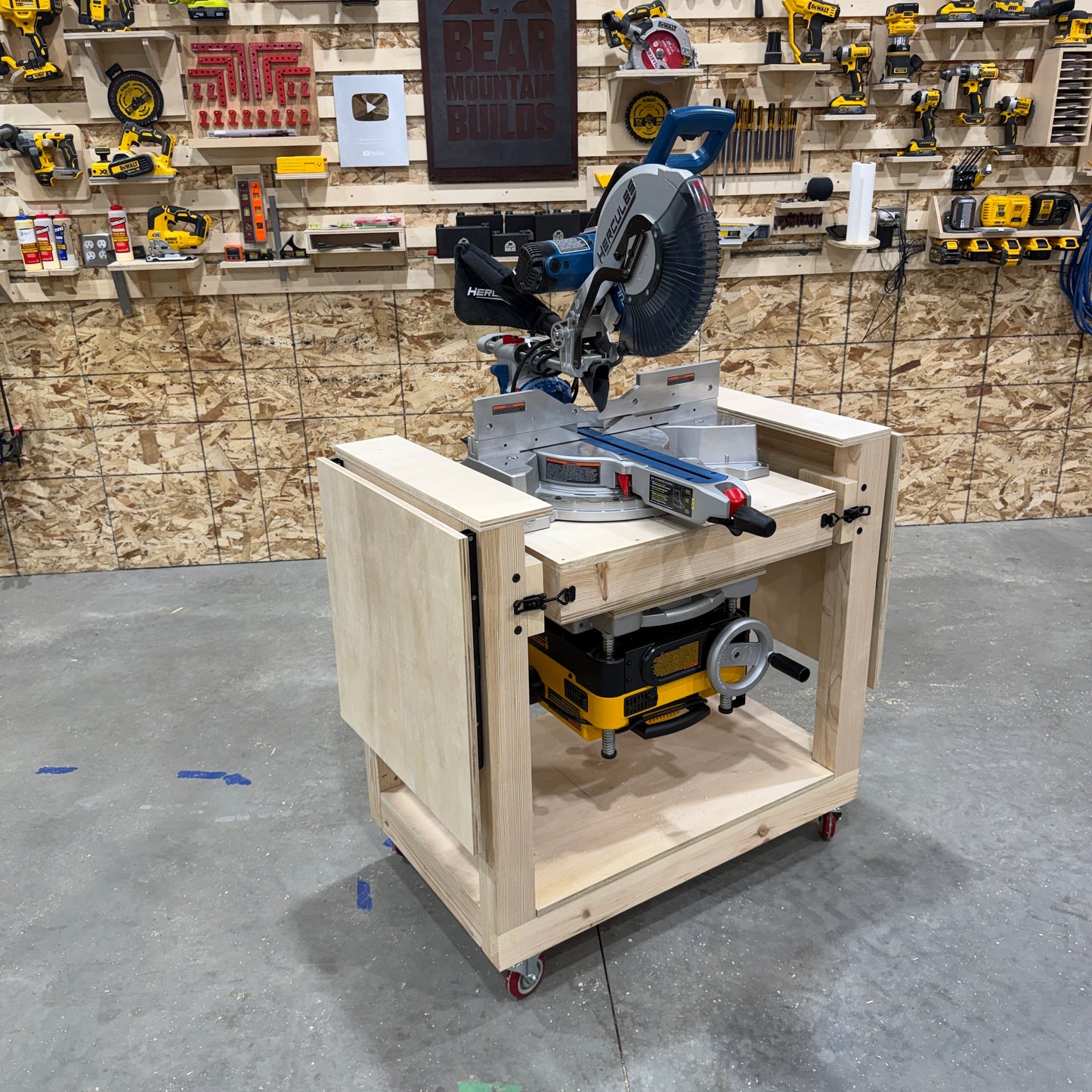

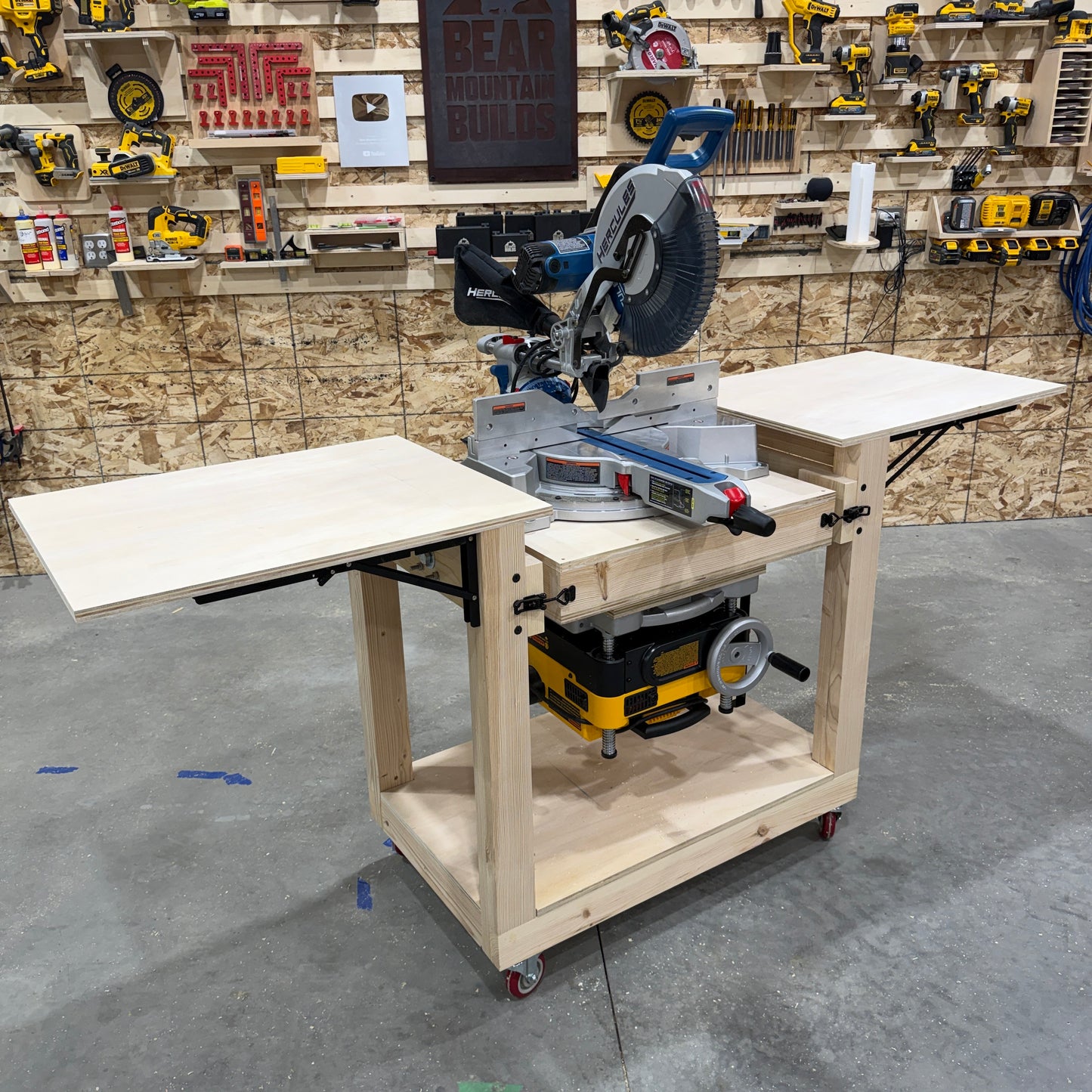

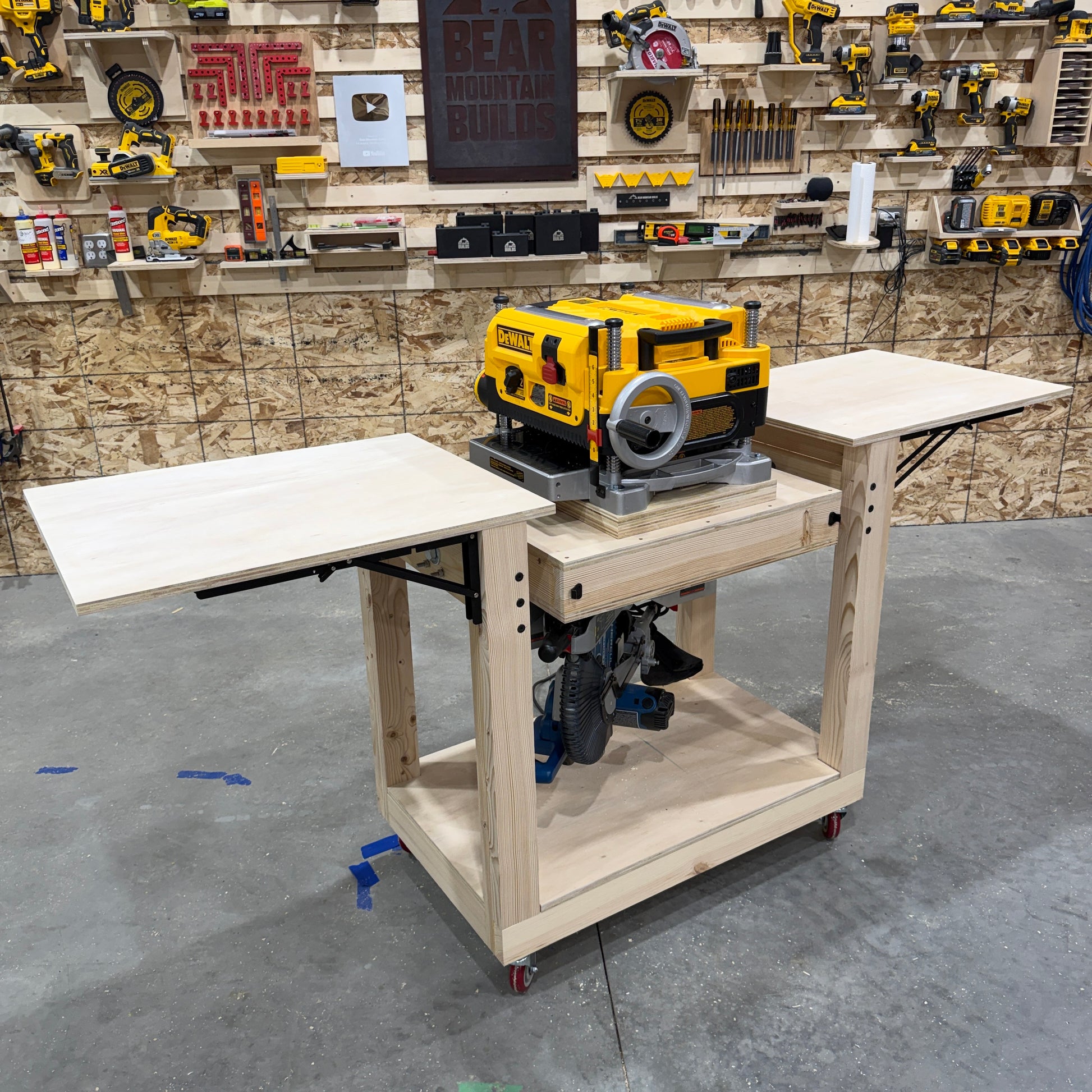

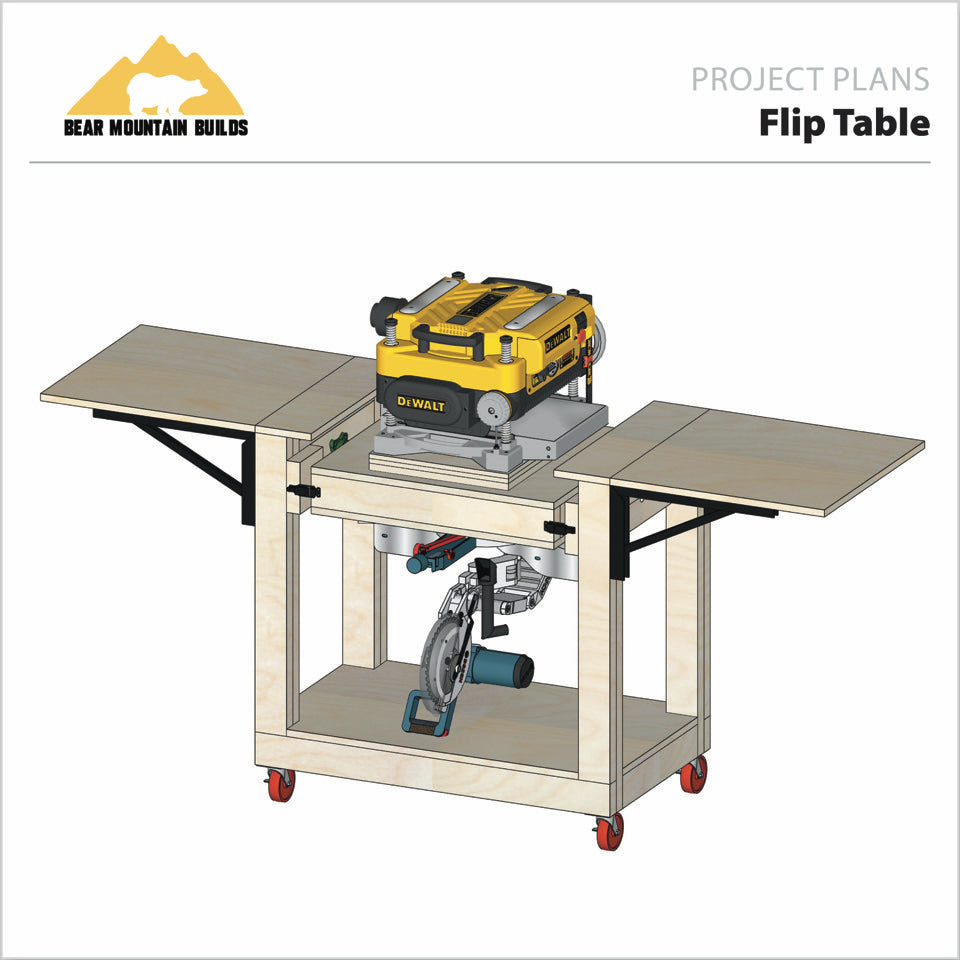

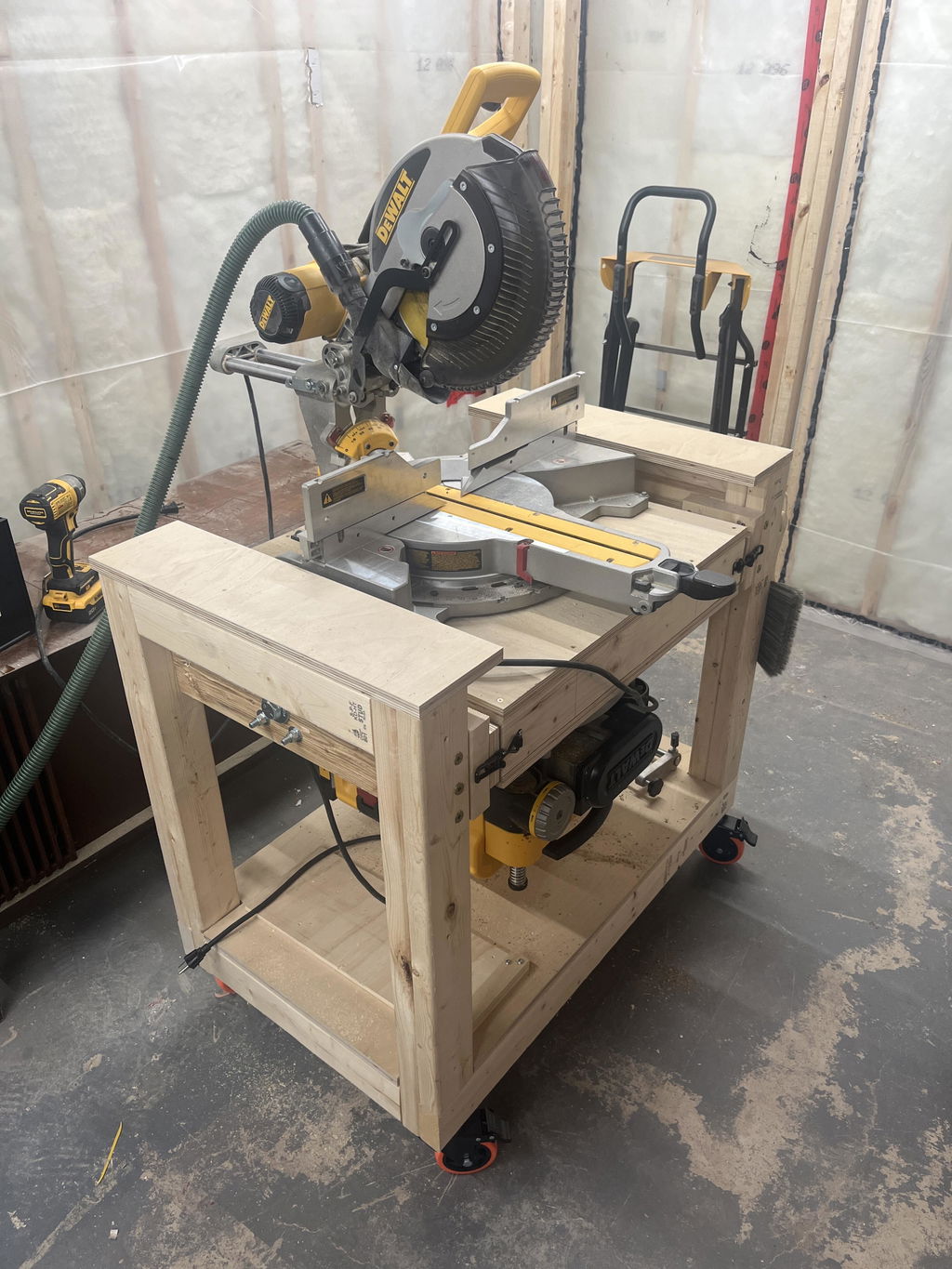

Stop dedicating a separate stand to a tool you only pull out once in a while. The Flip Table mounts two benchtop tools back-to-back on one flip-top frame — flip it over, lock it in, and you're set up on the other tool in seconds.

Built from 2x4s, 2x6s, and 3/4" plywood designed to suit all experience levels, and sized to fit all my other shop builds. An automatic calculator custom-fits the whole build to your specific tools, height, and board dimensions — just plug in your numbers and the plans adjust to fit.

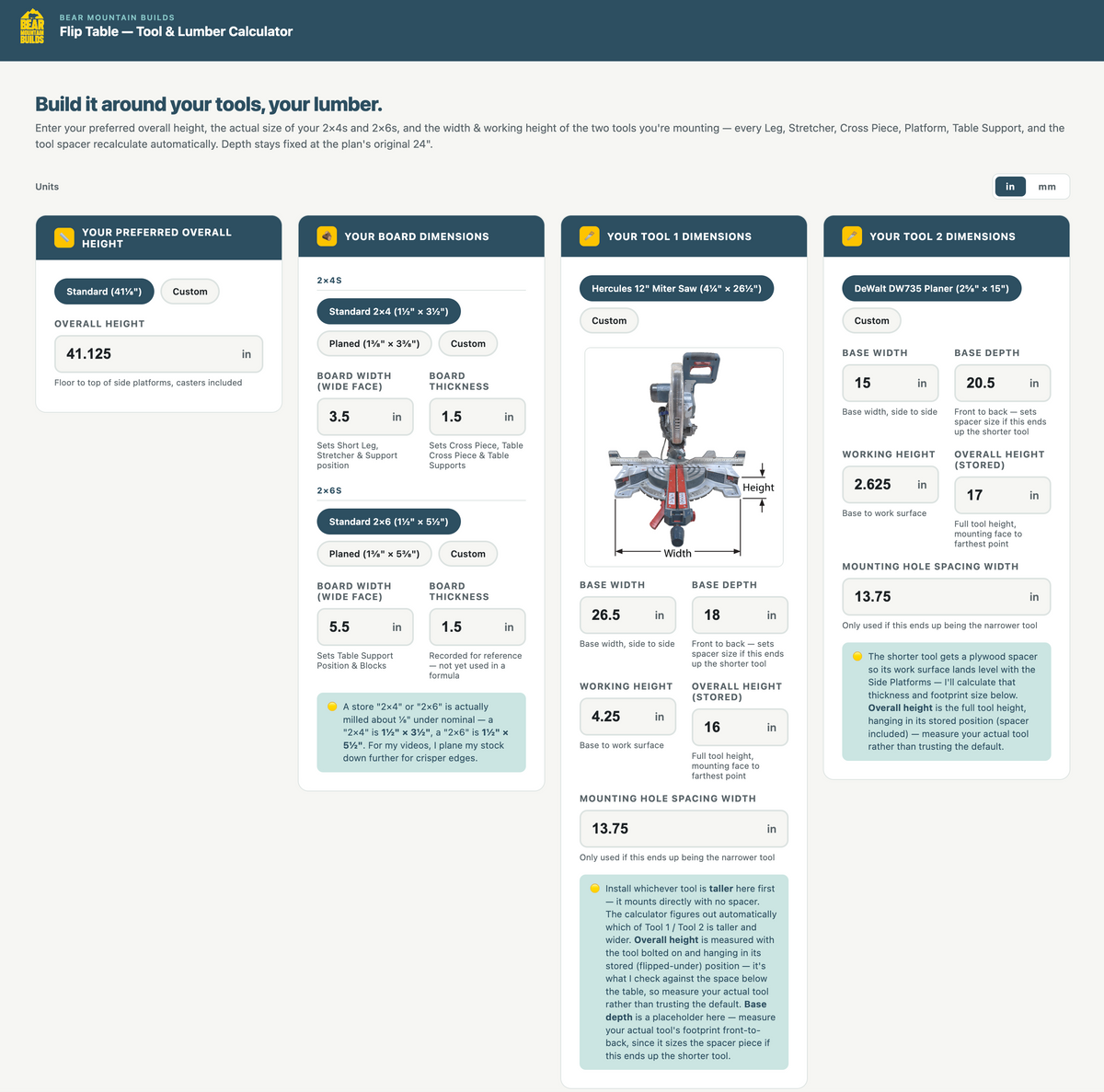

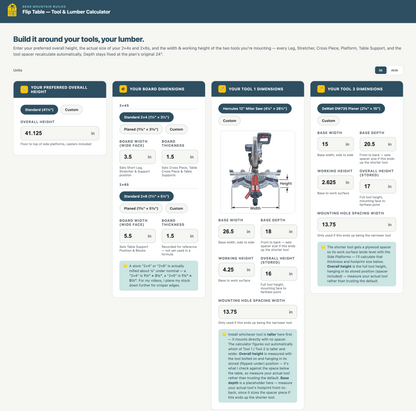

Built-In Calculator

Change a number, and the entire cut list, cut plan, and 3D diagrams update to match. No redrawing plans, no manual math.

• Enter your [Tool 1] and [Tool 2] dimensions and the frame adjusts to fit it exactly

• Set your own overall height so the table lines up flush with your other benches
• Input your board dimensions — standard, milled, or metric 2x4s/2x6s and every cut recalculates to match


Plans Include:

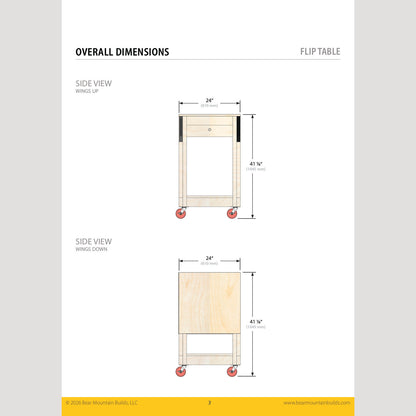

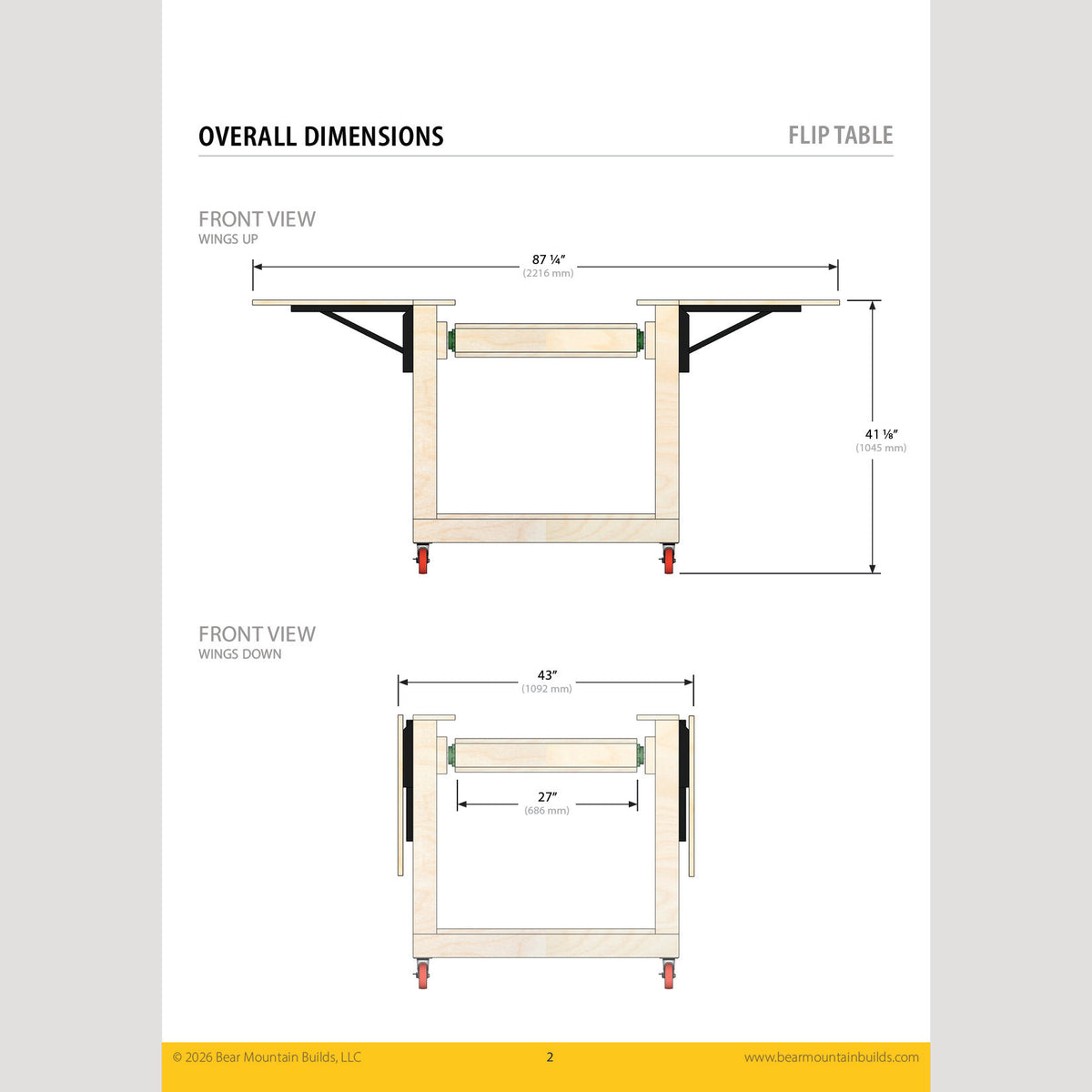

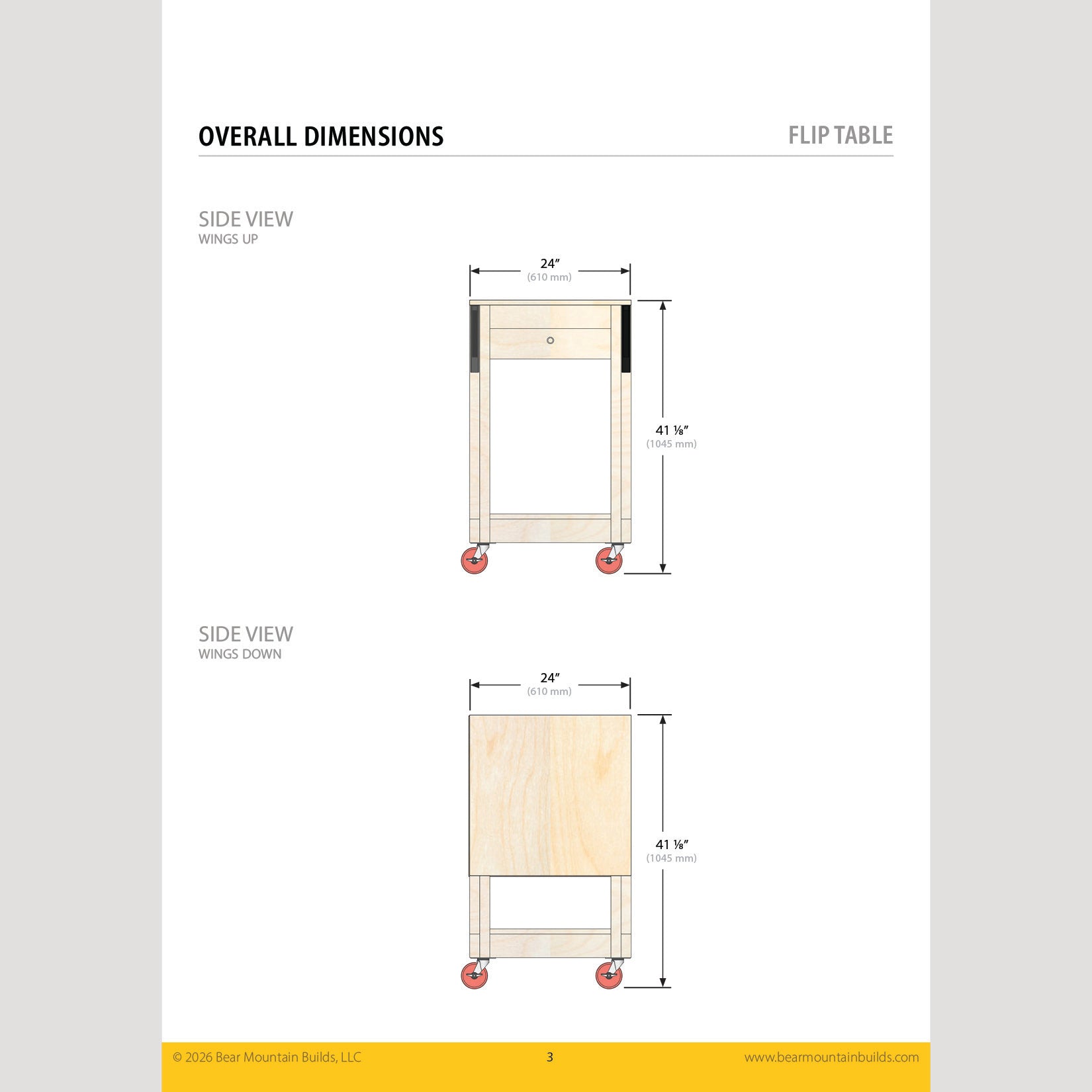

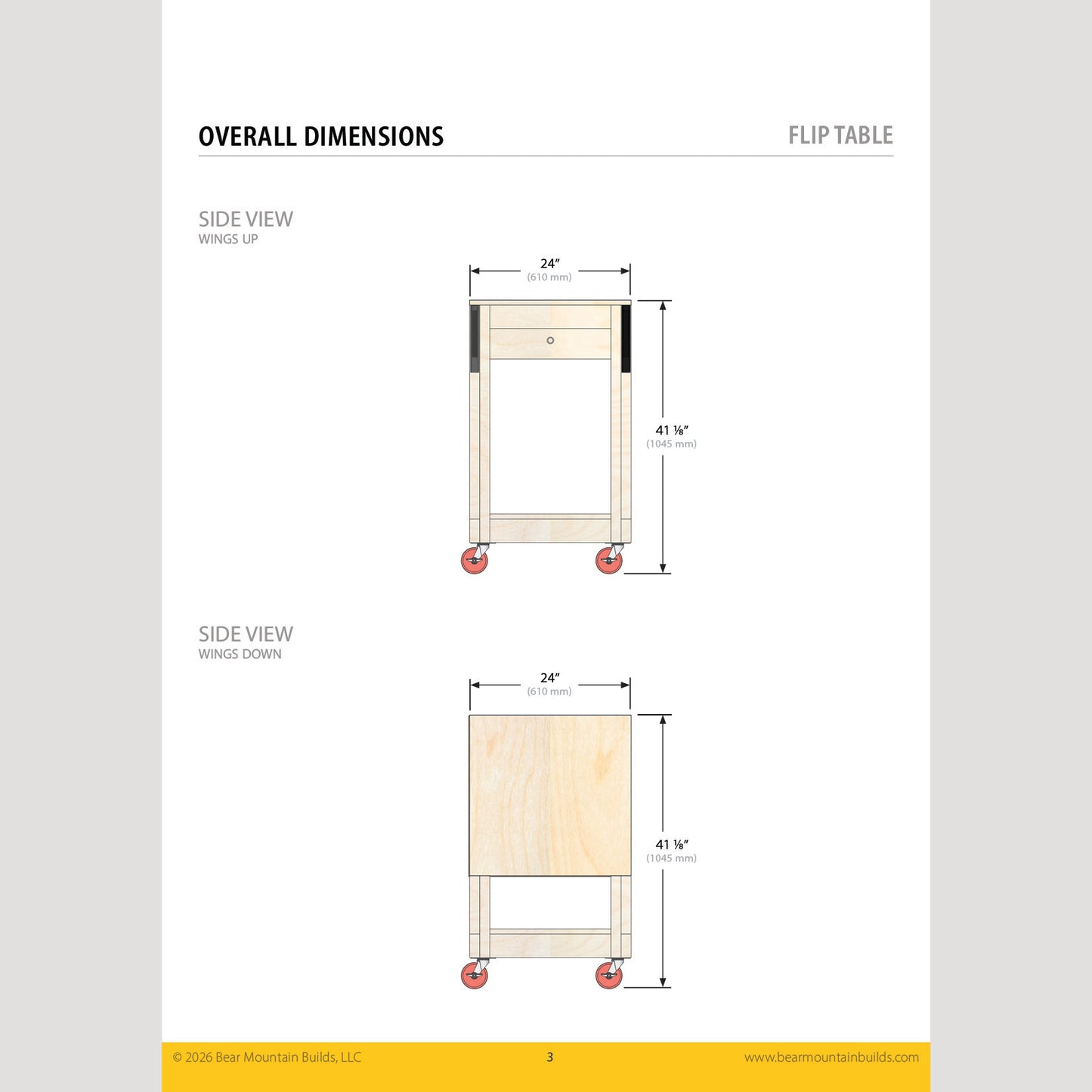

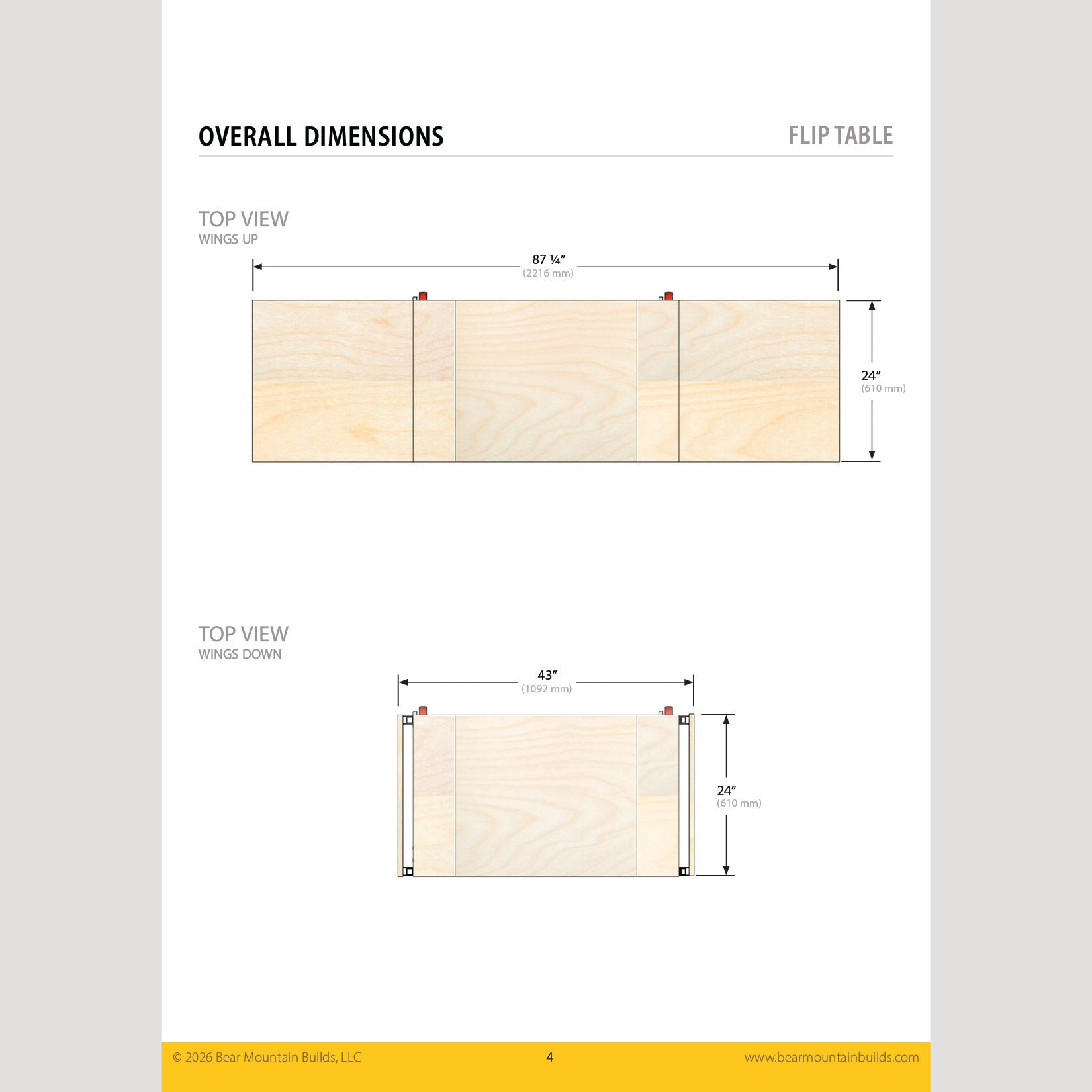

• Digital PDF download — 32 pages that include everything you'll need to build this flip table
• Automatic calculator to custom-fit the build to your specific tools, height, and board dimensions

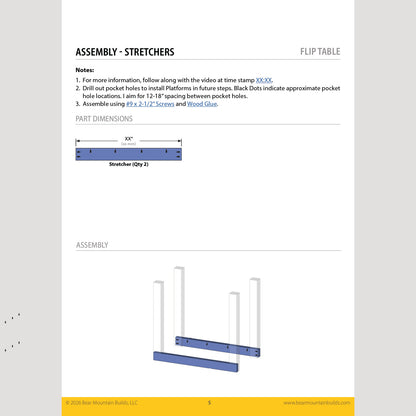

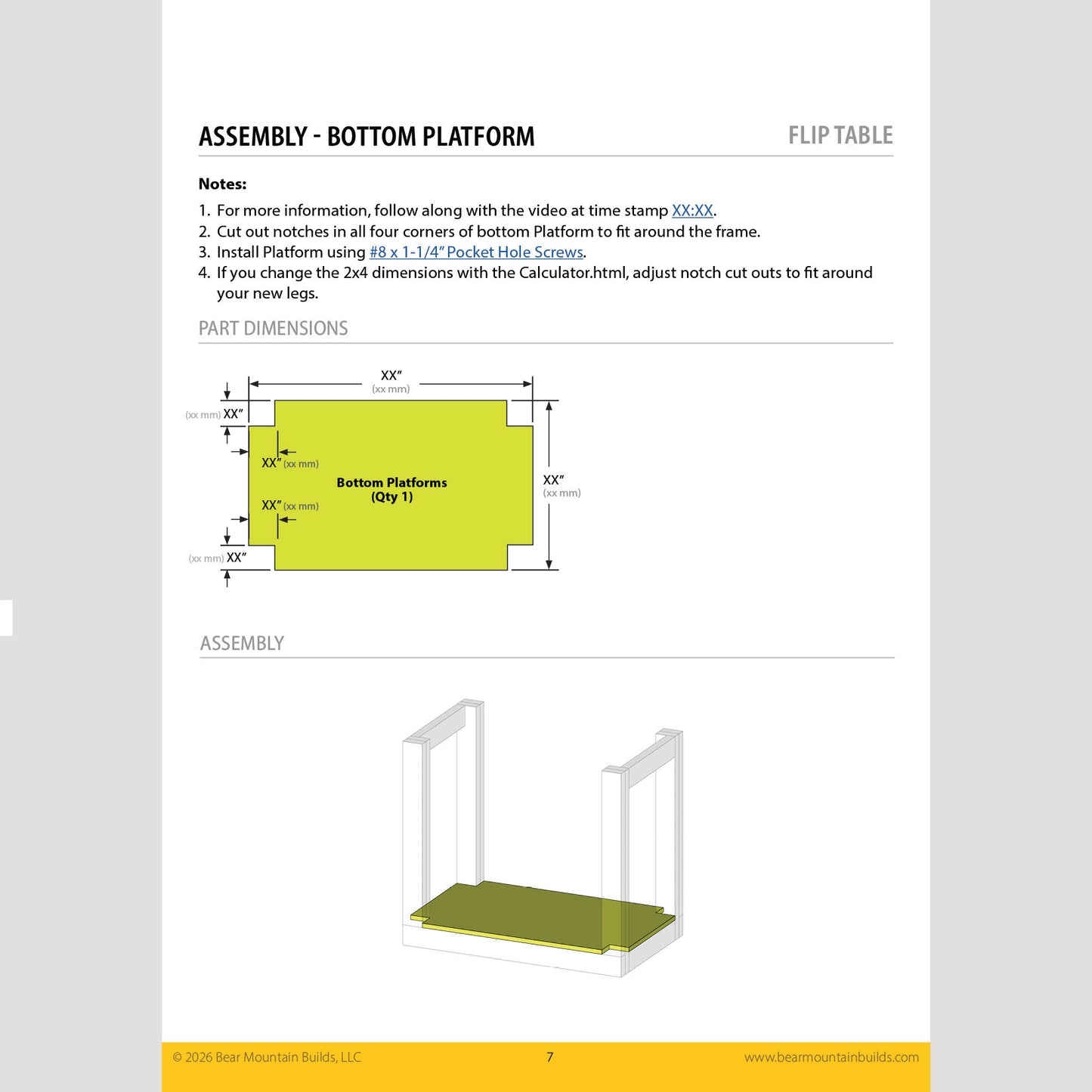

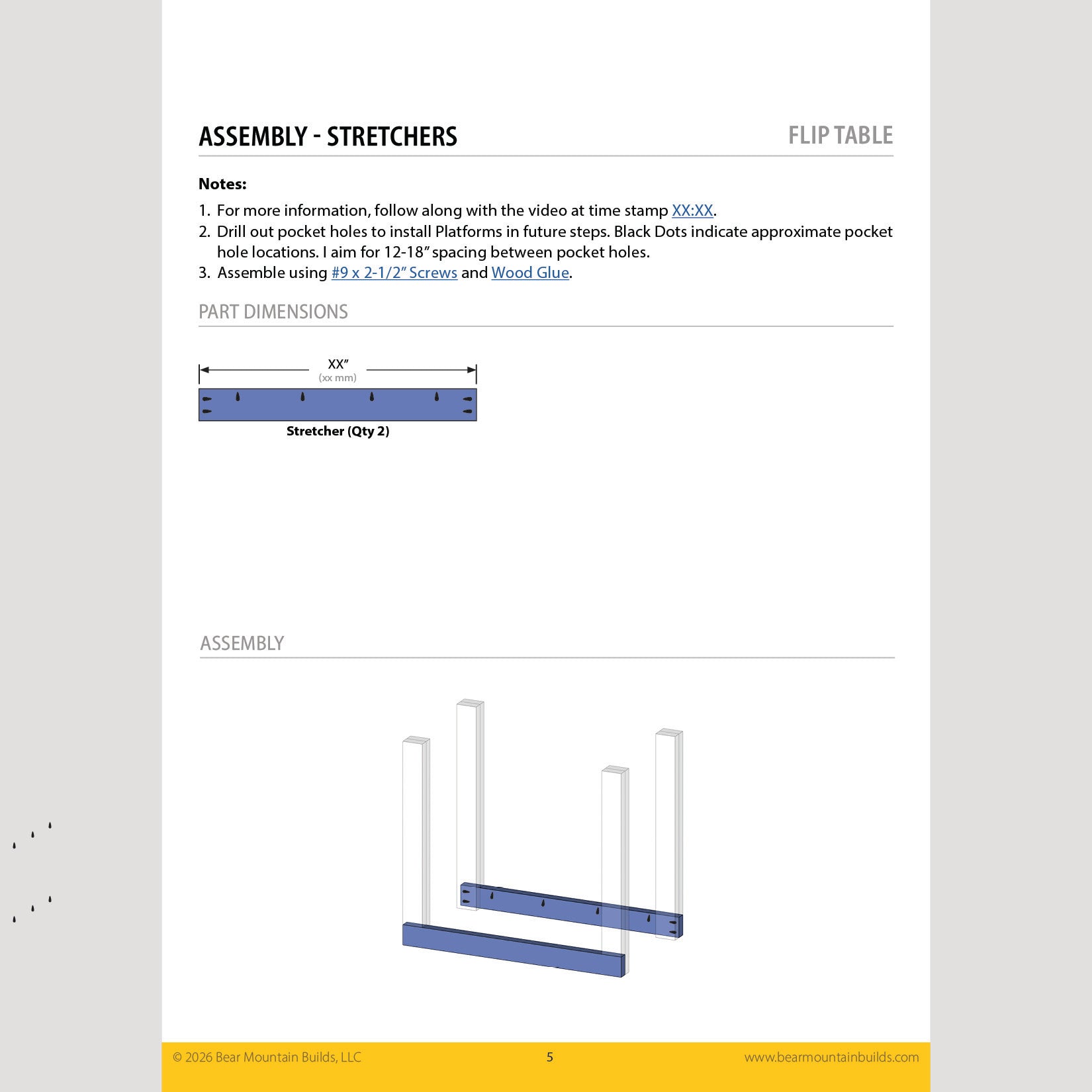

• Color coded 3D images and cut plans so you know exactly where every piece goes

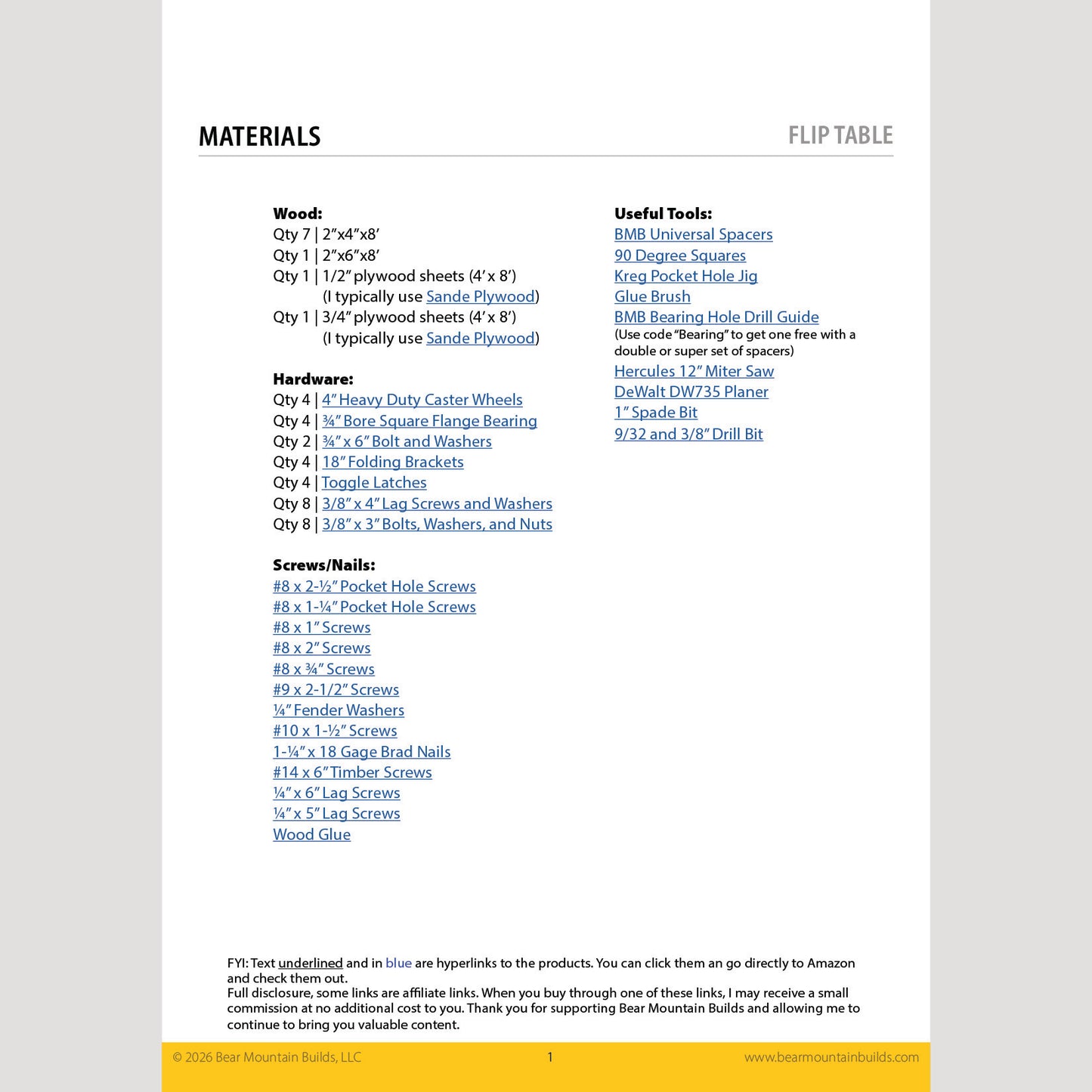

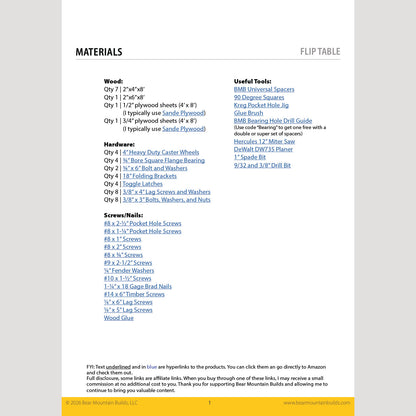

• Full material list with links to all hardware so you don't have to go searching
• All dimensions in inch and millimeter units
• [Any special tools/hardware — hinges, latches, etc. — with links]

3D Model Available

• Make modifications to the design easily
• Get the 3D model in the following file formats: Autodesk Fusion (.f3d), Sketchup (.skp), and Autodesk Inventor (.ipt/.iam)
• Bundle and save by getting the models and plans at the same time!

See the full step by step build video HERE
