Everyone needs a dust collector in their shop. Instead of spending thousands of dollars on an overprice dust extractor or make a huge mess dumping out a shop vac build this 5HP 100 CFM dust collector that’s even remote controlled.
Designed to tightly fit the Rigid NXT compact vacuum.
Plans Include:
- 18 pages that include everything you’ll need to build this Cyclone Dust Collector

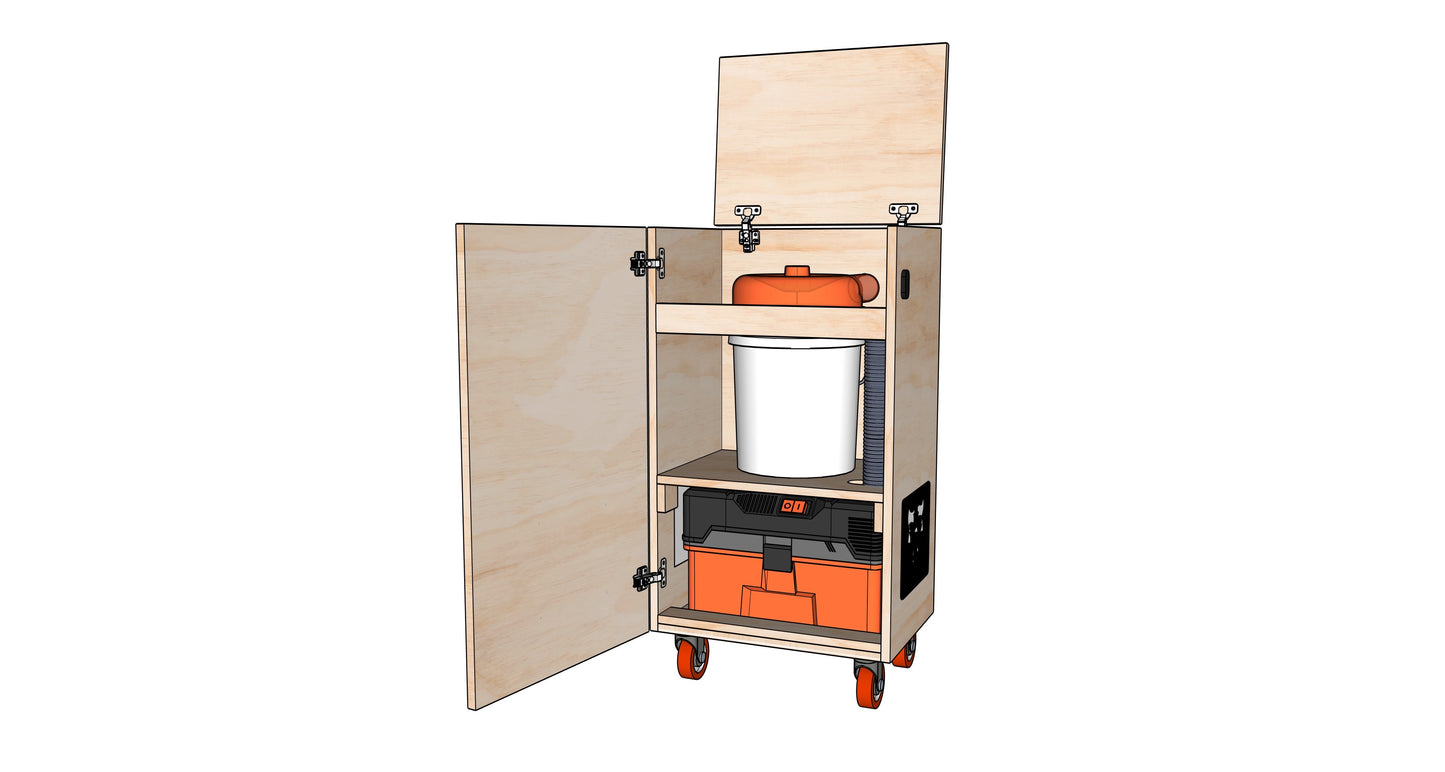

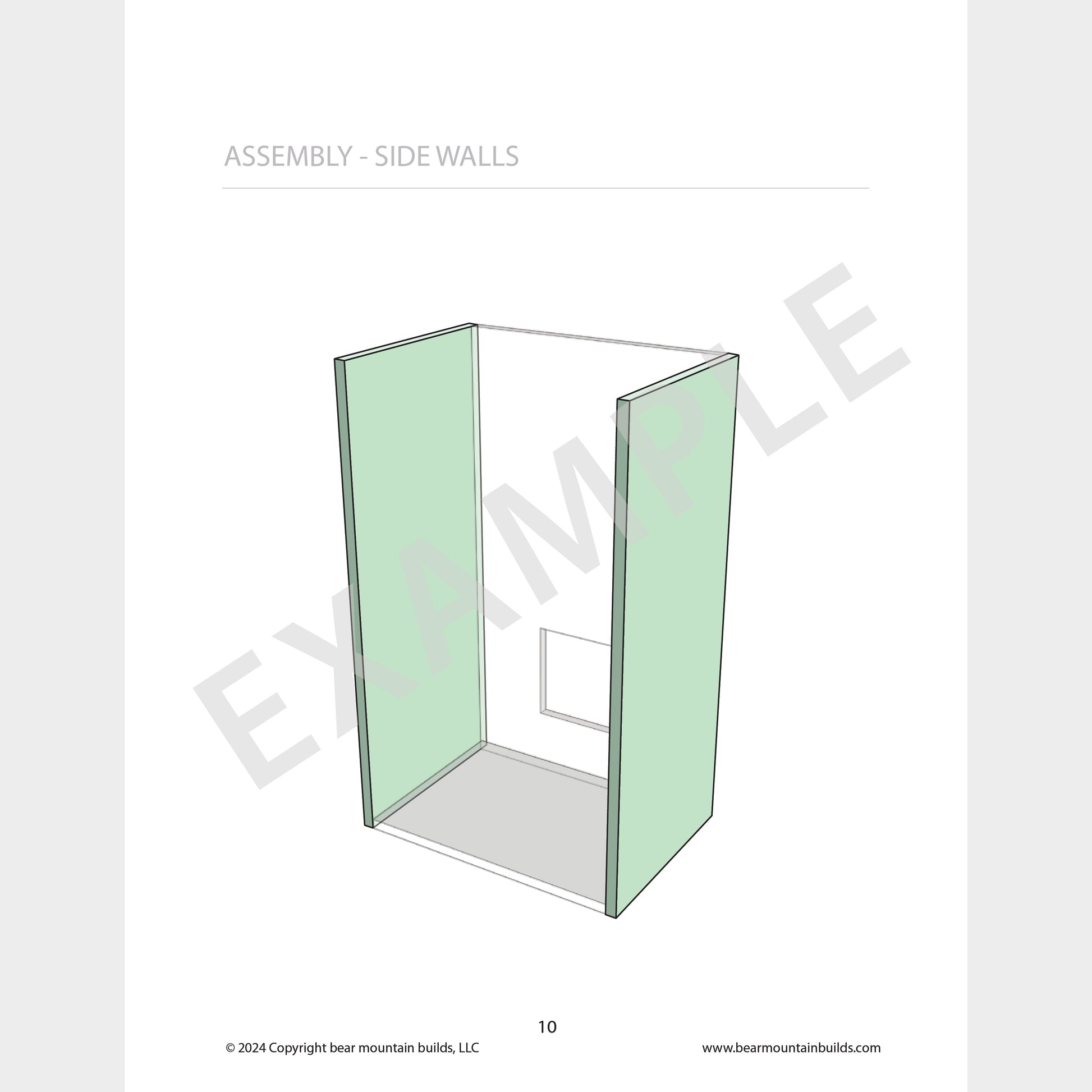

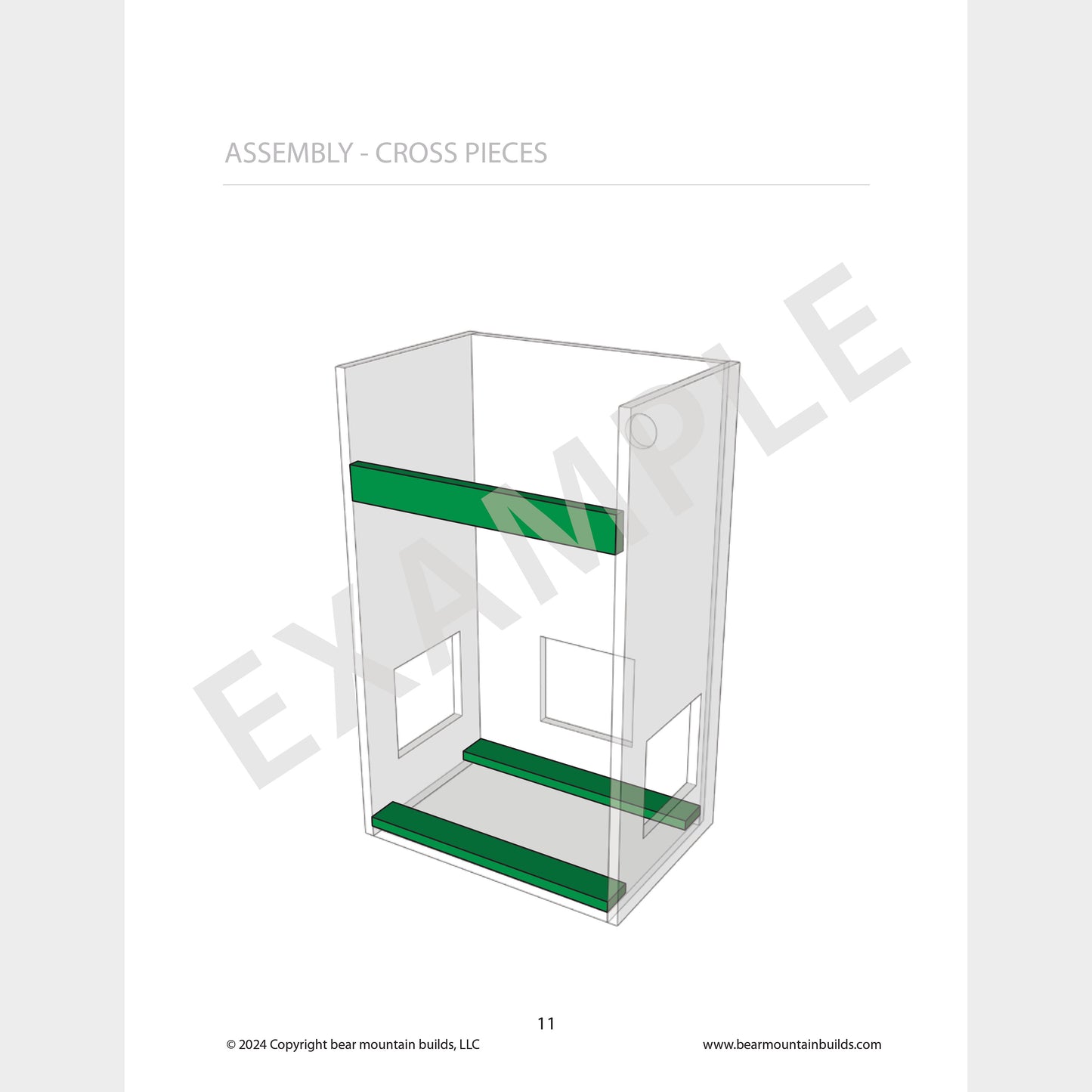

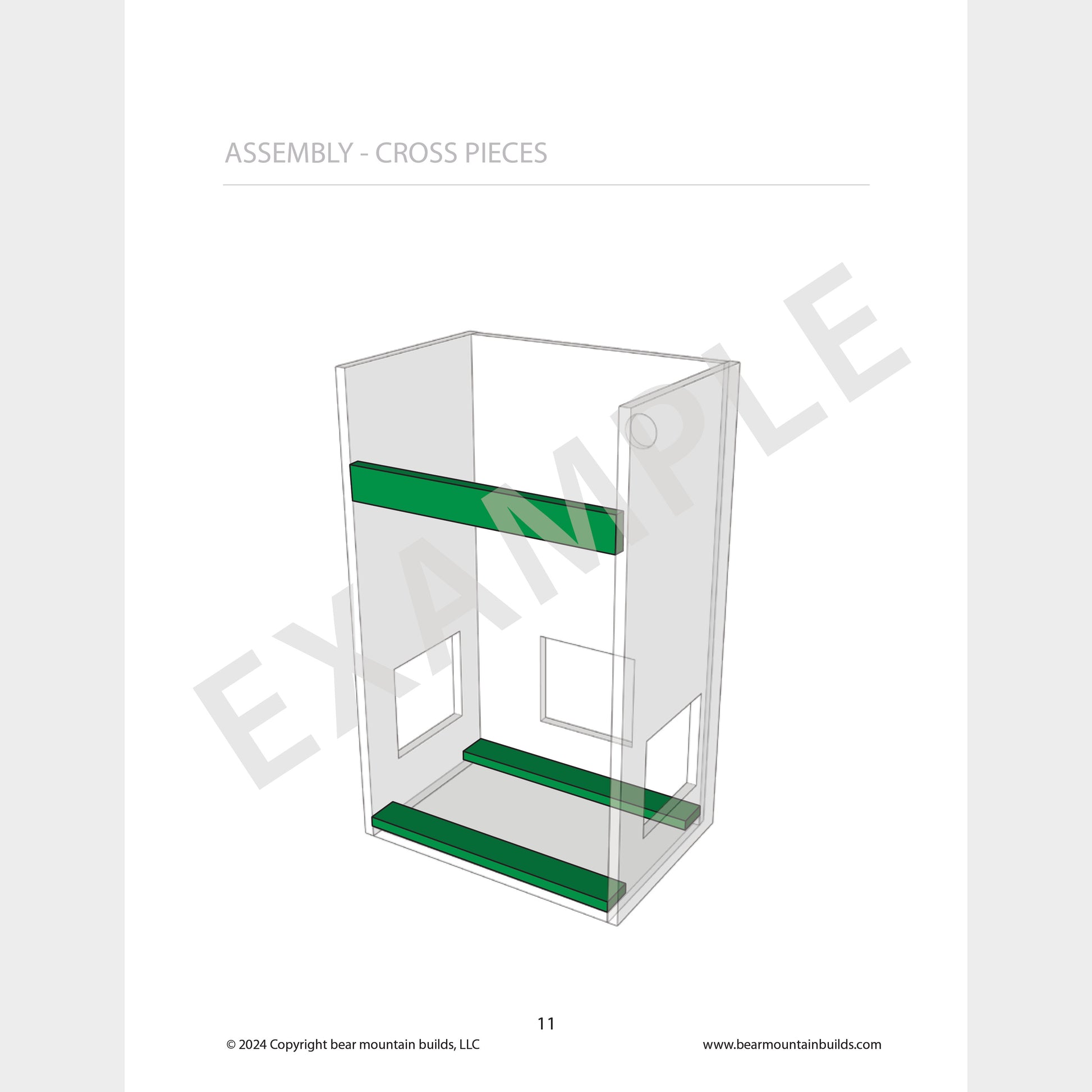

- Color coded 3D images and cut plans so you know exactly where every piece goes

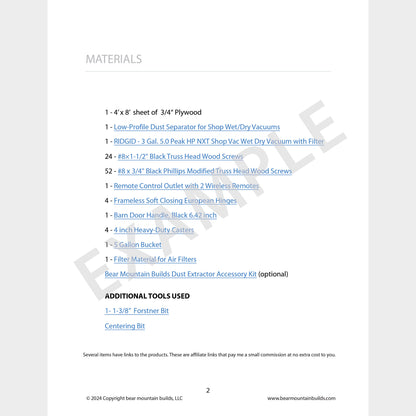

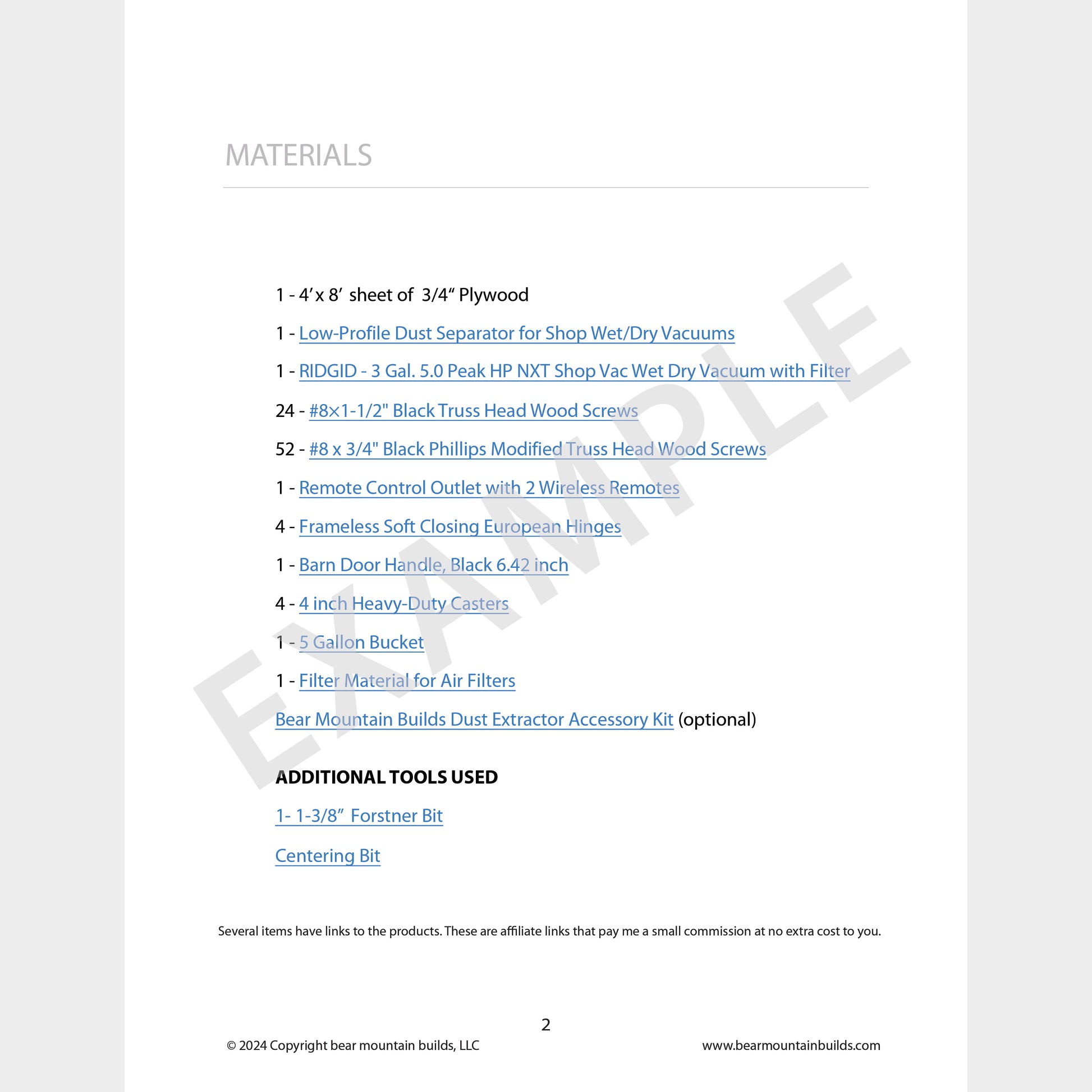

- Full material list with links to all hardware so you don’t have to go searching
3D Model Available
- Make Modifications to the design easily
- Get the 3D model in the following file formats: Autodesk Fusion (.f3d), Sketchup (.skp), and Autodesk Inventor (.ipt .iam)
- Bundle and save by getting the models and plans at the same time!
See the full step by step build video HERE
Also checkout the Dust Collector Accessory Kit to enhance the build!

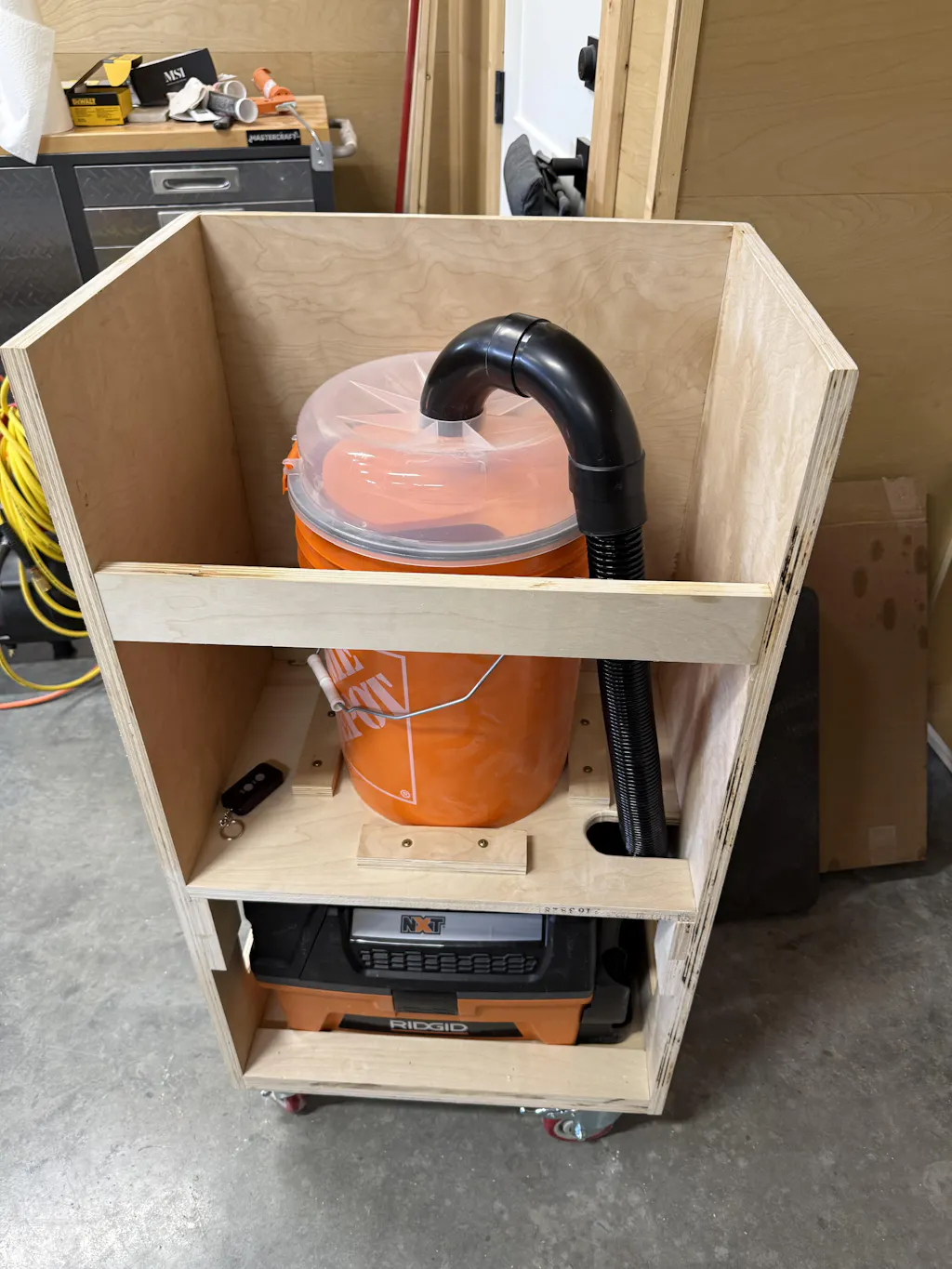

The plans are excellent. Very thorough.

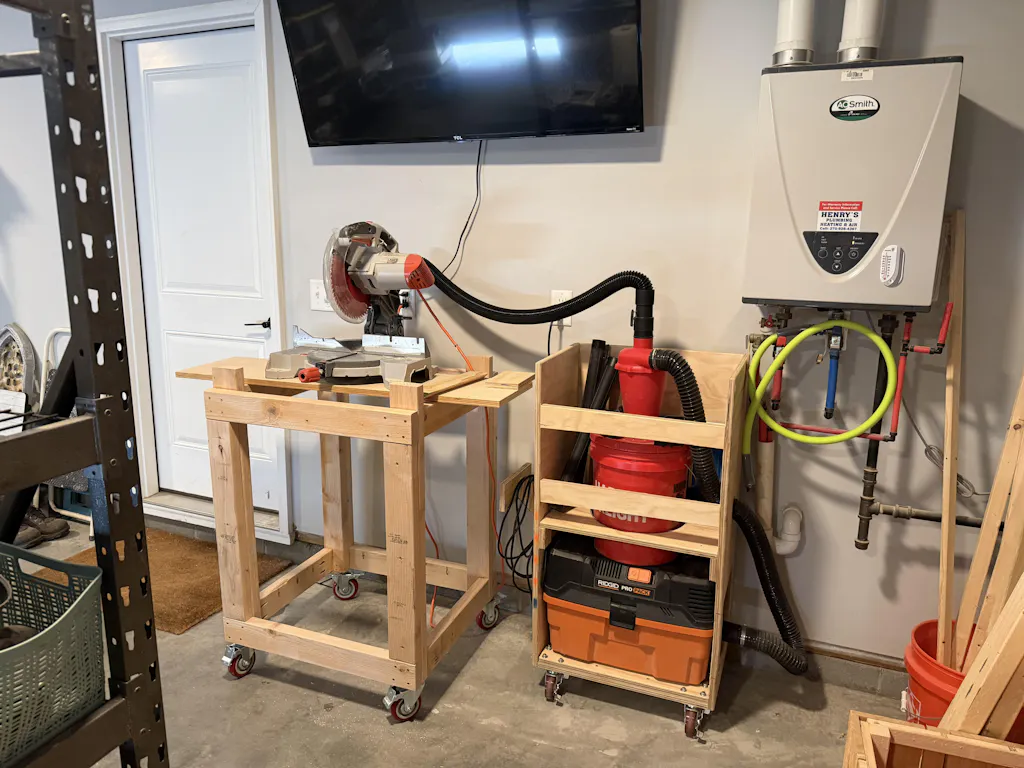

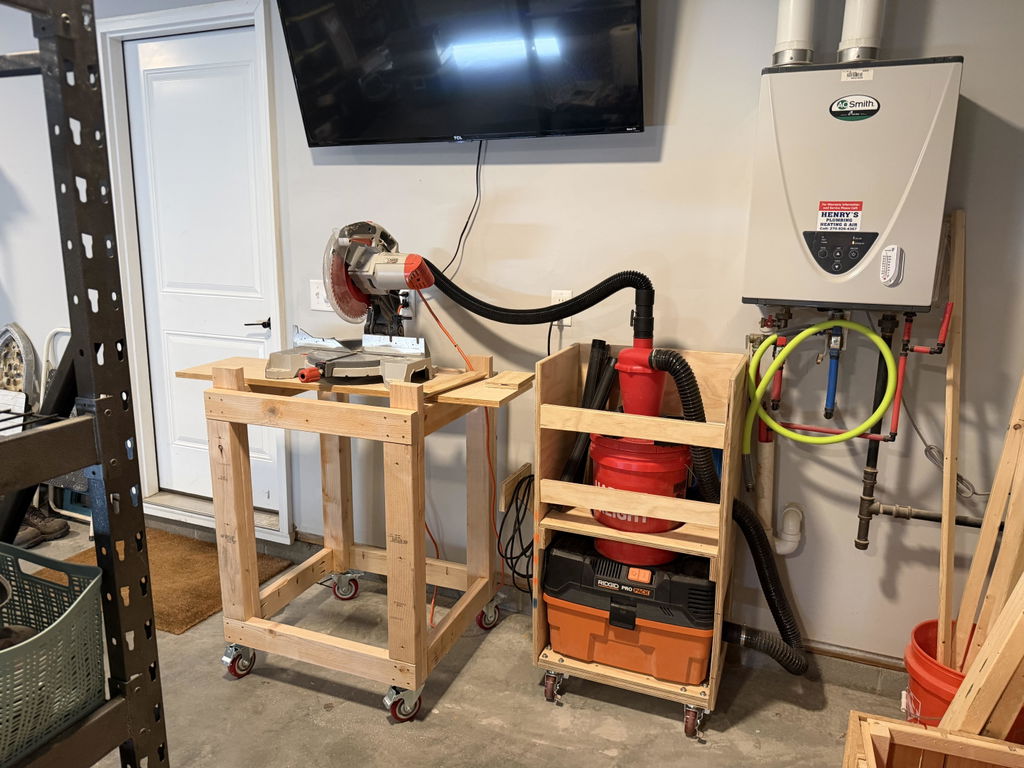

the build went well, cut plywood as per the cut sheet. The only issue was the hose and connecters, had a hard time getting the connections from cyclone to the hose and to my saws. I will be shopping for one more flexible and a connector kit of some kind.
Due to different heights of the collection pail, you might want to suggest measuring before cutting the hole for the vacuum hose. I had to recut mine now I have an extra hole. I should have thought of it, but I didn't. Otherwise I love my new dust collection system.
Easy to follow plans, works well!

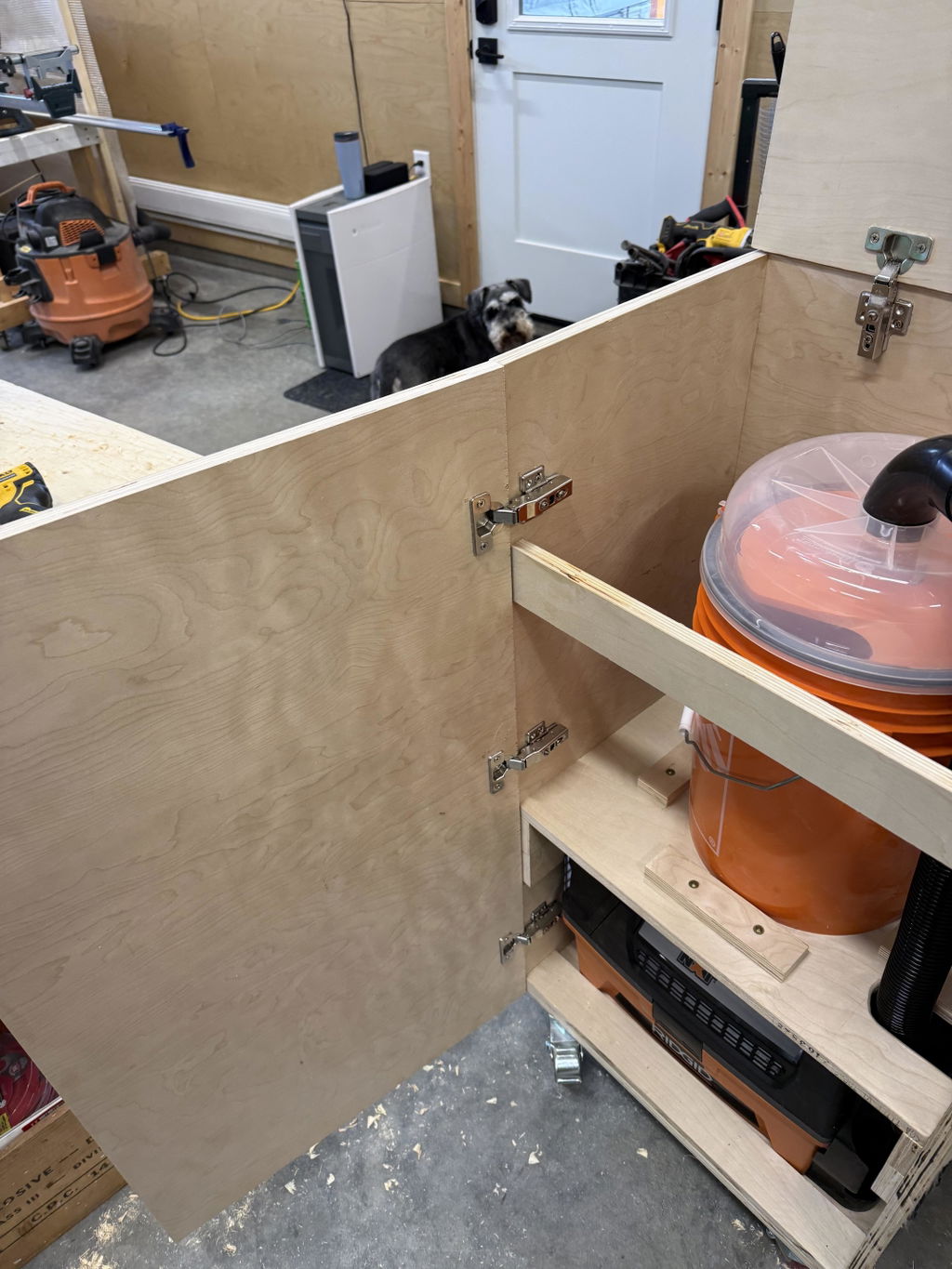

Excellent plans for a super useful build. Very happy with my result and added a few additions just to improve the overall function. Thanks for the YouTube content and the plans and extra bits (including the hinge installation guide jigs).
