Enhance your shop with an expanding outfeed table for your jobsite table saw. 7X your working space so you can cut up to a 4'x8' sheet of plywood. This build is perfect for those looking to save space in a smaller shop or garage. Designed for DeWalt DWE7485 table saw, but includes easy formulas to fit to your table saw
Plans Include:
22 pages that include everything you’ll need to build this Expandable Outfeed Table
All dimensions in inch and millimeter units
Color coded 3D images and cut plans so you know exactly where every piece goes
Easy calculations to fit to your table saw
Full material list with links to all hardware so you don’t have to go searching
3D Model Available
Make Modifications to the design easily
Get the 3D model in the following file formats: Autodesk Fusion (.f3d), Sketchup (.skp), and Autodesk Inventor (.ipt .iam)
Bundle and save by getting the models and plans at the same time!
Awesome plans, awesome engineering! The table was a joy to build and is the perfect fit for my multi use garage/workshop. Modified the spacing for a skil jobsite saw, but no problems there, fit nicely after a bit of simple math.
J
Jeff Kirk

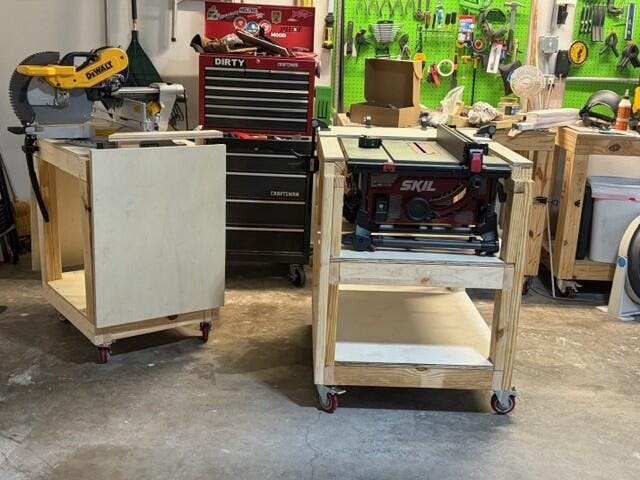

The plans were easy to adjust for my particular brand saw (Skil.) The last remaining steps are to hang the side and outfeed wings, but so far it is great.
K
Ken
Gathering parts now ,still looking at 🪚 saws
D
Delores Thompson
Best set of plans I've found. Easy to follow and links to needed parts.
M
Martin McDerby
The plans were for the smaller Dewalt table saw.
I have the 10” blade version.
In order to build, I had to upscale the sizes plus make a few adjustments in order to operate the lever for the removal of the riving knife.
Overall, very satisfied as the plans gave a decent guide into what was needed and I’m very happy with the build that I have made.
